Measurement with Micrometers: Types and Applications

In the world of precision manufacturing and engineering, accurate measurement is paramount. Among the most trusted tools for achieving such exactness is the micrometer. This instrument, capable of measuring with incredible precision, is indispensable in workshops and quality control labs worldwide. Understanding the different types, their components, and how to interpret their readings is essential for any professional in the field.

content:

What is a Micrometer Anyway?

The Different Kinds of Micrometers

What in the World is a µm?

How to Read a Micrometer

What is a Micrometer Anyway?

Imagine you need to measure the exact thickness of a coin or a small metal block. A regular ruler wouldn't be precise enough. This is where the micrometer comes in. Its main job is to measure the outside size of objects super precisely.

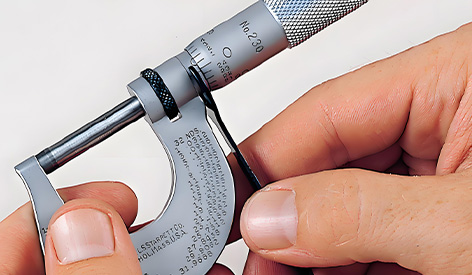

The tool has a few main parts that work together: a sturdy C-shaped frame, a fixed part called an anvil, and a moving part called a spindle. You place the object between the anvil and the spindle. Then, you gently turn a knob called a ratchet until the object is snugly held. This special knob makes sure you don't squeeze too hard, which keeps the measurement accurate and fair every time.

The Different Kinds of Micrometers

Just like there are different types of video games, there are different types of micrometers for different jobs.

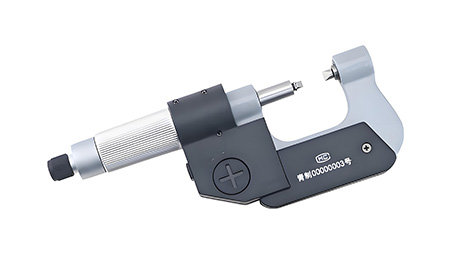

A common type is an outside micrometer set. This isn't just one tool; it's a box of several micrometers. Each one is like a different level in a game, made to measure a different range of sizes. One might measure small things from 0 to 1 inch, and a bigger one would measure from 1 to 2 inches.

Then there's the digital outside micrometer set. This is the high-tech version! Instead of having to read tricky lines on a scale, it has a digital screen that shows the number right away—like a digital watch. It's faster and helps avoid mistakes.

Some micrometers are famous brands, known for being really well-made. A Mitutoyo outside micrometer set is like the superstar of micrometers—top quality and very reliable. A Fowler outside micrometer set is also a great choice that many people in the USA use. Another good brand is Insize outside micrometer set.

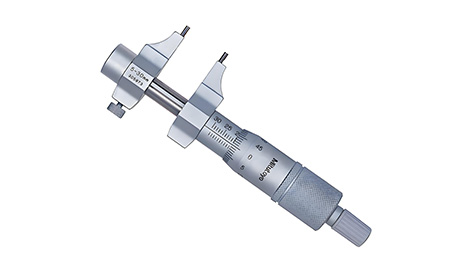

There's also a super handy tool called an inside outside micrometer set. This is like a two-in-one toy. It can measure the outside of an object, and with extra pieces you add on, it can also measure the inside of holes, like the inside of a pipe.

What in the World is a µm?

When things get really, really small, scientists use a special unit. The µm meaning is short for micrometer (also called a micron). It's a million times smaller than a meter! To give you an idea, a human hair is about 70 µm thick. It's a tiny unit used for tiny, precise measurements.

How to Read a Micrometer

Learning to read an old-fashioned micrometer is like learning a secret code. The sleeve has numbers, and the thimble (the part you turn) has lines. You add the big number you see on the sleeve to the smaller number on the thimble to get your measurement.

For example, if the sleeve says 5 millimeters and the thimble's line points to 12, you do 5 + (0.01 x 12) = 5.12 mm. It takes practice, but it's a fun puzzle! Digital micrometer readings are much easier—the answer just pops up on the screen.
