In the realm of industrial manufacturing and engineering, securing workpieces reliably is paramount to ensuring structural integrity, durability, and performance across various applications. One of the most effective solutions for creating strong, reusable threads in materials that may otherwise be prone to wear, stripping, or failure is the use of threaded inserts. These components are specially designed to provide enhanced threading capabilities, distributing loads evenly and resisting pull-out forces. As industries evolve, the demand for specialized inserts has grown, catering to diverse materials like metals, composites, and even 3D-printed parts. This article delves into the technical aspects of threaded inserts, exploring their applications, types, and benefits in modern workpiece connections, with a focus on key variants such as those for metal, steel, composites, and innovative uses in additive manufacturing.
content:

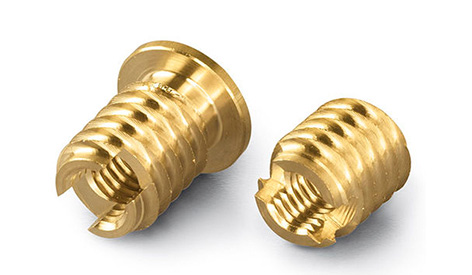

Understanding Threaded Inserts
Threaded inserts are fastener components installed into pre-drilled holes to create durable, internal threads that can accommodate screws, bolts, or other threaded fasteners. They are commonly used in materials where direct threading might be unreliable, such as soft metals, plastics, or composites. By reinforcing the connection point, threaded inserts prevent damage from repeated assembly and disassembly, reducing maintenance costs and improving product lifespan. Types include press-in inserts, helical inserts, and threaded screw inserts, each suited to specific load requirements and installation methods. For instance, threaded screw inserts often feature external threads that bite into the host material, providing a secure hold without the need for adhesives. This versatility makes them indispensable in industries ranging from aerospace to consumer electronics, where precision and reliability are non-negotiable.

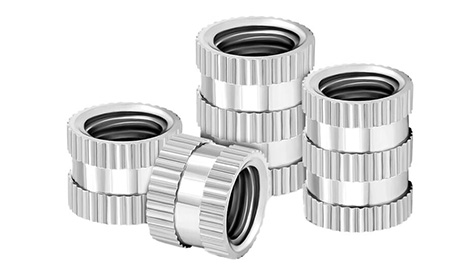

Applications of Threaded Inserts
The threaded insert applications span a wide array of sectors, highlighting their adaptability and efficiency. In automotive manufacturing, they are used to secure engine components and body panels, ensuring threads withstand vibrations and thermal cycles. Electronics assemblies rely on them for mounting circuit boards and enclosures, where delicate materials require reinforced threading to avoid strip-outs. Similarly, in furniture and construction, threaded inserts enable sturdy connections in wood and composite materials, supporting heavy loads without compromising integrity. One notable advantage is their role in repair scenarios, where worn-out threads can be restored quickly without replacing entire parts. As technology advances, these applications extend to renewable energy systems, such as wind turbine blades, where threaded inserts for composites provide lightweight yet robust fastening solutions. Overall, the breadth of threaded insert applications underscores their critical role in enhancing workpiece connections across diverse environments.
Threaded Inserts for Metal and Steel
When working with metal substrates, the choice of inserts is crucial to match the material's properties. Thread inserts for metal are engineered to handle high-stress conditions, often made from materials like stainless steel, brass, or aluminum to resist corrosion and fatigue. These inserts typically feature coarse external threads or knurled surfaces that grip the metal securely upon installation, preventing rotation or loosening under torque. For instance, in machinery fabrication, thread inserts for metal are pressed or ultrasonically installed into aluminum frames to create reliable mounting points for sensors and actuators. Similarly, threaded inserts for steel are designed to withstand even greater forces, commonly used in structural steelwork, automotive chassis, and heavy equipment. They may include variants like key-locking inserts that expand upon screw insertion, ensuring a permanent hold in high-vibration settings. This specialization ensures that workpiece connections in metal and steel applications maintain integrity over time, reducing the risk of failure in critical systems.
Sheet Metal Screw Inserts
In lightweight metal applications, such as enclosures or automotive body panels, sheet metal screw inserts offer a tailored solution for thin materials. These inserts are designed to distribute clamping forces over a larger area, preventing deformation or pull-through in sheet metal. Typically, they feature a threaded interior and a flanged or barbed exterior that bites into the pre-punched holes, allowing screws to be fastened securely without stripping the delicate metal. Common in HVAC systems, electronics casings, and appliance manufacturing, sheet metal screw inserts simplify assembly by enabling strong threads in materials as thin as 0.5 mm. Their installation often involves press-fitting or staking, and they excel in environments where weight savings are prioritized without sacrificing strength. By using these inserts, manufacturers can achieve repeatable, high-quality connections that endure dynamic loads and environmental exposure.
Threaded Inserts for Composites
Composite materials, such as carbon fiber, fiberglass, and laminates, present unique challenges due to their anisotropic nature and susceptibility to delamination. Threaded inserts for composites address these issues by providing a reinforced anchoring system that spreads loads evenly across the material fibers. These inserts often include designs like potted or bonded types, where epoxy or adhesive is used to secure them in place, enhancing pull-out resistance. In aerospace and marine industries, for example, threaded inserts for composites are vital for attaching components to lightweight structures, ensuring threads remain intact under extreme temperatures and moisture. Additionally, some variants feature radial locking mechanisms that minimize stress concentration, preserving the composite's integrity. This specialization makes them essential for high-performance applications where traditional threading would compromise material properties.
3D Printing Threads
With the rise of additive manufacturing, integrating durable threads into 3D-printed parts has become a key focus. 3D printing threads can be achieved through various methods, such as designing internal threads directly into the model or using heat-set inserts that melt into the plastic upon installation. Threaded inserts are particularly valuable here, as they add metal reinforcement to printed components, preventing wear from repeated screw use. For instance, in prototyping or custom fixtures, installing threaded inserts for plastics—often via ultrasonic or thermal methods—ensures robust connections in materials like ABS or PLA. This approach combines the design flexibility of 3D printing with the strength of traditional fastening, enabling functional parts in robotics, medical devices, and consumer products. Moreover, it reduces post-processing time and improves reliability, making 3D-printed assemblies more practical for industrial use.

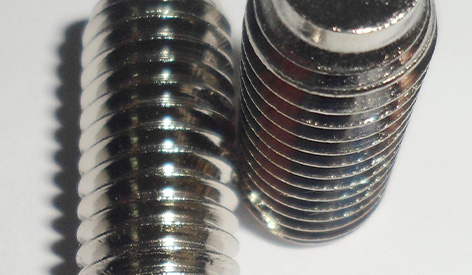

Threaded Screw Inserts and Variants
Threaded screw inserts represent a versatile category that includes helical wire inserts and solid bushing types, commonly used to repair damaged threads or reinforce soft materials. These inserts are installed into existing holes, where their coiled or threaded design expands to form a permanent thread interface. In applications like engine blocks or machinery, threaded screw inserts restore functionality without requiring part replacement, saving time and costs. They also excel in preventing galling and seizing in stainless steel assemblies, thanks to materials like phosphor bronze or Inconel. Beyond repair, they are proactive solutions in new designs, ensuring long-term durability in high-cycle environments. By integrating these inserts, engineers can optimize workpiece connections for both performance and sustainability.
In summary, threaded inserts are indispensable components in modern workpiece connections, offering tailored solutions for metals, composites, sheet metal, and even 3D-printed parts. From threaded insert applications in automotive and aerospace to specialized variants like threaded inserts for steel and composites, these fasteners enhance reliability, durability, and efficiency. As industries continue to innovate, the evolution of threaded screw inserts and related technologies will further empower engineers to tackle complex assembly challenges. By understanding and selecting the right insert type, manufacturers can achieve stronger, more sustainable connections that meet the demands of today's dynamic engineering landscape.
