In the realm of industrial manufacturing and engineering, the need for reliable and durable workpiece connections is paramount. Threaded inserts play a crucial role in this domain, offering a robust solution for creating strong, reusable threads in various materials. These components are essential for assemblies that require repeated disassembly and reassembly, ensuring longevity and integrity in applications ranging from automotive to consumer electronics. By embedding threaded inserts into workpieces, manufacturers can overcome limitations like material weakness or wear, thereby enhancing the overall performance and safety of connected parts. This article delves into the intricacies of threaded inserts, exploring their applications, materials, installation techniques, and specific types, all tailored to meet the demands of modern engineering practices.
In simple terms, a threaded insert is a small, metal piece that acts like a permanent, super-tough nut. You put it inside a material to give a screw something much stronger to bite into.
Let's use a fun example. Think about a Lego brick. The little studs on top and the tubes on the bottom are designed to fit together perfectly. A threaded insert is like adding a super-strong, metal tube inside a soft material, so a screw (the "stud") has a perfect, tough place to connect. This is super important for things that need to be strong but also taken apart for repairs, like the inside of a car door or the casing of a laptop.
Cars and Trucks: They are used to hold parts of the engine and the interior panels together. Cars shake and vibrate a lot, so these inserts keep everything from rattling loose.
Airplanes: Planes need to be very light, but also incredibly strong. Threaded inserts help attach parts securely without adding too much weight.
Your Toys and Gadgets: Inside your game console or on the back of a TV remote, threaded inserts make it possible for repair people to open them up, fix what's wrong, and put them back together without breaking the plastic.
Furniture: Have you ever put together a bookshelf from a flat box? Many of those pieces use threaded inserts so you can screw the bolts in tightly and even take the shelf apart and rebuild it later if you move.
What Are Threaded Inserts Made Of?
Just like we choose different materials for different jobs (a raincoat for rain, a winter coat for snow), we pick threaded insert materials based on what they need to do.
Stainless Steel: This is like the superhero of metals. It's really strong and doesn't rust, which is perfect for things that might get wet, like parts on a boat or outside.
Brass: This metal is a little softer and is great for electricity. You might find brass inserts in electronic devices.
Aluminum: This is a very light metal, which makes it perfect for airplanes and race cars where every pound matters.
Using Inserts in Soft Materials
Threaded inserts for plastic are a special team of heroes. Plastic is great, but it's not very tough against a sharp, spinning metal screw. If you try it, you can easily strip the hole.
So, for plastic, we use special inserts. Some are pushed in with heat, which slightly melts the plastic around them to form a super tight grip as it cools. Others are pressed in with so much force that they squeeze into the plastic and can't come out. This makes the plastic part as strong as metal where it counts!
How Do You Put Them In?

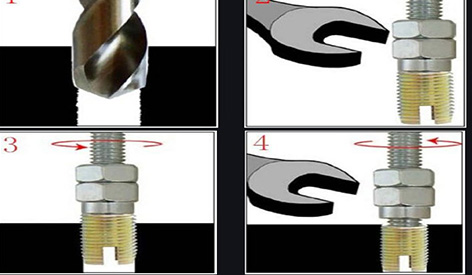

Threaded insert installation is like a mini science project. You can't just hammer them in! You have to be precise.
Drill a Hole: First, you drill a hole that is the exact right size for the insert. Not too big, not too small.
Put it In: How you put it in depends on the type:
Some are pressed in with a special tool.
For plastic, some are heated up and then pushed in, melting their way into a perfect fit.

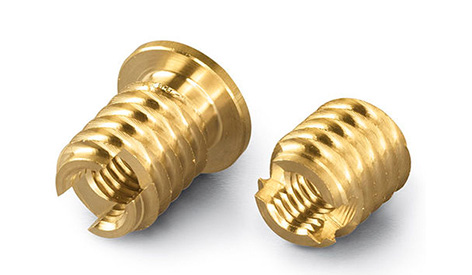

Others are twisted in, like a screw, which cuts their own threads into the material.
Getting the installation right is super important to make sure the insert is strong and doesn't pop out.
The Many Types of Threaded Inserts
There are many different types of threaded inserts, each designed for a special job. It's like having different types of screws and nails for building different things.

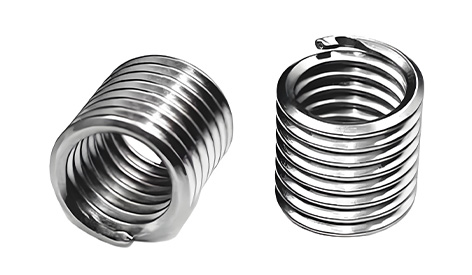

Helical Inserts: These look like a tiny, super-tight spring. They are coiled up and are awesome for fixing a hole that has already been stripped out. You put the coil inside the old, broken hole, and it gives you brand-new, strong threads!
Solid Inserts: These are just what they sound like—a solid piece of metal. They are used for the heaviest and toughest jobs.
A Closer Look at Two Special Types
Let's look at two common types you might hear about:

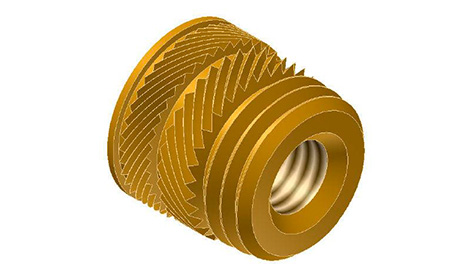

Press in threaded inserts are probably the easiest to understand. These inserts have little ridges or bumps on their outside. You use a tool to press them straight into a perfectly sized hole. The ridges bite into the material around it, holding it super tight. They are used a lot because they are fast and simple.

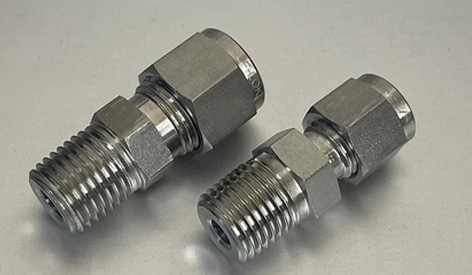

NPT threaded inserts are the experts for pipes and water. "NPT" stands for National Pipe Taper. This means the threads are slightly cone-shaped, not straight. When you screw a pipe into this kind of insert, the cone shape creates a super-tight, water-proof seal. That's why you find them in sprinkler systems, air compressors, and anywhere else that needs to stop leaks!
In conclusion, threaded inserts are indispensable components in the world of workpiece connections, offering enhanced strength, durability, and versatility across numerous industries. From their diverse applications and material choices to specialized types like press-in and NPT variants, these fasteners address a wide range of engineering challenges. Proper installation techniques further ensure that threaded inserts perform reliably under stress, making them a go-to solution for assemblies requiring repeated access or exposure to harsh conditions. As manufacturing evolves, the continued innovation in threaded insert designs promises even greater efficiency and adaptability, solidifying their role in creating secure and long-lasting connections.
