The question "What does the prototype look like?" has no single answer in B2B manufacturing. A prototype is a physical tool whose appearance and fidelity must directly align with its purpose. A prototype for aesthetic market testing looks entirely different from one designed for mechanical stress testing. For purchasing managers, the goal is to correctly match the required Physical Prototype Stages to the most appropriate, cost-effective manufacturing technology.
A successful product launch hinges on moving seamlessly between these stages—from quick visual checks to final material validation. This guide breaks down the three essential physical prototype stages, detailing the manufacturing method that offers the right balance of speed, cost, and functional accuracy for each phase.
content:
Stage 1: Visual and Form Check (The Aesthetic Model)
Stage 2: Functional and Engineering Test (The Performance Model)
Stage 3: Pre-Production and Material Validation (The Bridge Model)
Stage 1: Visual and Form Check (The Aesthetic Model)
The goal of Stage 1 is simple: verify the form, fit, and aesthetic appeal of the design. Mechanical properties are secondary. This stage requires high surface quality and dimensional accuracy for simple geometry.
Manufacturing Choice: Stereolithography (SLA) 3D Printing or Multi Jet Fusion (MJF). SLA offers the best surface finish and detail resolution, making it ideal for painting and high-cosmetic standards. MJF offers quick turnaround and isotropic strength for early snap-fit tests.

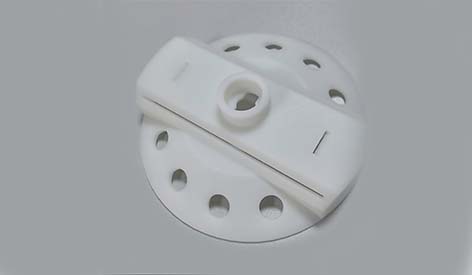

What the Prototype Looks Like: It is typically a fully assembled, painted, and finished model that accurately represents the final product's texture, color, and size. It allows designers to test ergonomics and validate internal component fit.
Key Constraint: The material (often resin or Nylon powder) does not replicate the final mechanical properties of the end-use plastic. It is for visualization and assembly checks only.
Stage 2: Functional and Engineering Test (The Performance Model)

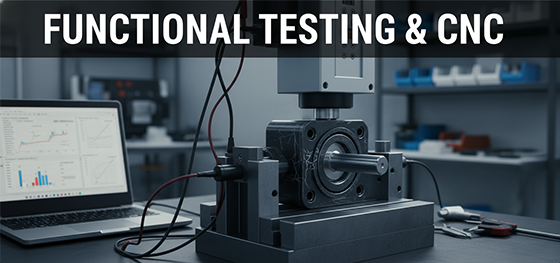

Stage 2 shifts the focus entirely to mechanical performance, material consistency, and structural load testing. The prototype must be made of the actual or a direct equivalent of the final end-use material.
Manufacturing Choice: High-Precision CNC Machining. Cutting parts directly from engineering-grade stock material (Aluminum, Stainless Steel, PEEK, ABS, Nylon) guarantees that the part has the correct Yield Strength, thermal properties, and dimensional stability for rigorous performance testing.
What the Prototype Looks Like: It is often raw or bead-blasted metal/plastic with visible machining marks. Aesthetics are ignored; the focus is on CMM-verified dimensions, precise hole locations, and material integrity.
Key Constraint: CNC Machining is costly for complex, organic shapes. Therefore, the prototype should focus on testing the mechanical *interfaces* and *critical* stress areas of the final design.
Stage 3: Pre-Production and Material Validation (The Bridge Model)
Stage 3 serves as the final, low-volume validation before the expensive commitment to hard steel Injection Molds. The goal is production consistency, material simulation, and market testing batches.

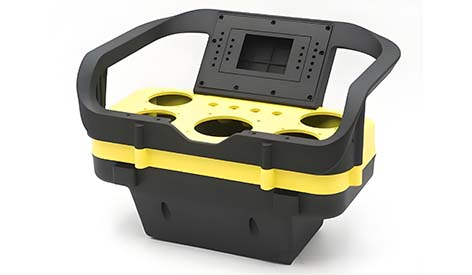

Manufacturing Choice: Vacuum Casting (Urethane Casting) or Rapid Tooling (low-cavitation Aluminum Molds). Vacuum Casting uses specialized polyurethane resins to mimic the final material's feel and aesthetic, while Rapid Tooling uses the final Injection Molding process but minimizes mold cost/complexity.
What the Prototype Looks Like: A small batch of 10 to 500 parts, highly consistent in color, finish, and material simulation. These parts are often used for final customer sign-off, internal sales samples, or regulatory submission.
Key Constraint: Vacuum Casting is limited by its material (Polyurethane) and mold lifespan (typically 25 parts). It is a perfect bridge, but not a mass-production solution.
The question of "What does the prototype look like?" must always be answered by the prototype's purpose. Jucheng Precision Technology offers end-to-end expertise across all three Physical Prototype Stages—from aesthetic SLA 3D Printing to precision CNC Machining and low-volume Vacuum Casting—ensuring your manufacturing strategy aligns with your design verification goals.
Secure the right fidelity for your next prototype. Contact us today to discuss the optimal manufacturing process for your product's current stage of development.
