Polycarbonate (PC) is the premier engineering thermoplastic, revered for its unparalleled impact strength, optical clarity, and thermal stability. While known globally for robust applications like safety windows and protective panels, its true potential lies in high-precision parts—from critical medical device components to automotive lighting systems.
However, manufacturing PC is a delicate process. Achieving defect-free parts requires sophisticated control over moisture, internal stress, and chemical compatibility—challenges that can easily lead to costly failures like warping or stress cracking. This guide provides B2B buyers with an essential checklist to navigate the specialized requirements for successful PC Injection Molding.
content:
The Material Core: Moisture Pre-Drying and Hydrolysis
Eliminating Internal Stress: Process Control and Annealing
The Hidden Risk: Chemical Compatibility and Stress Cracking
Achieving Optical Mastery: Molding Flawless Transparent PC
The Material Core: Moisture Pre-Drying and Hydrolysis

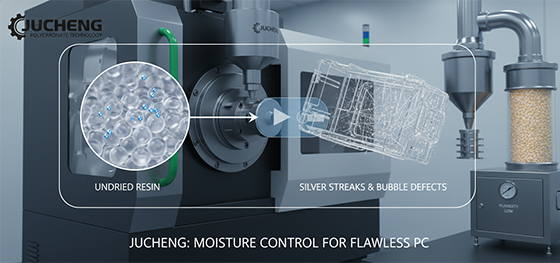

Polycarbonate is hygroscopic, meaning it readily absorbs moisture from the air. If the material is not dried to extremely low levels before molding (often less than 0.02%), the water reacts with the polymer at high temperatures, causing severe material degradation known as hydrolysis.
Loss of Impact Strength: Hydrolysis breaks down the polymer chains, significantly weakening the PC. The part loses its famous impact resistance and can become brittle, leading to immediate structural failure under load.
Visual Defects: Undried PC results in "silver streaking" or bubbles in the finished part due to the steam created during melting, which is immediately visible and renders optical or transparent parts unusable.
The Solution: Professional manufacturers use dedicated dehumidifying dryers with a precise dew point for pre-drying, ensuring the PC resin is processed safely, preserving its full mechanical strength.
Eliminating Internal Stress: Process Control and Annealing
Because Polycarbonate is an amorphous plastic, it lacks a defined melting point, making it highly susceptible to developing internal stress during the rapid cooling phase of injection molding. This stress is invisible but is a ticking time bomb for part failure.
The Cause: Stress occurs when the outer layer of the part cools and freezes before the inner core, creating tension within the material's structure. This is often exacerbated by thin sections meeting thick sections.

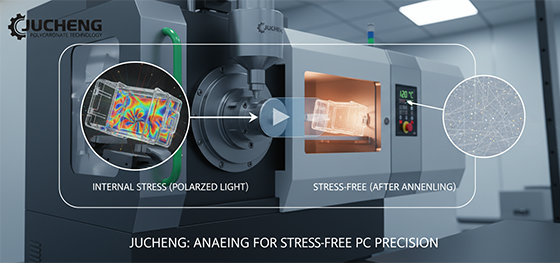

Stress Test: Internal stress can be visually detected using a Polarized Light Test (birefringence). Any areas showing rainbow patterns indicate high stress and potential future cracking.
The Solution (Annealing): For critical parts, a post-molding annealing (or stress-relief) process is mandatory. The part is slowly heated below its glass transition temperature, held to allow the molecular chains to relax, and then slowly cooled. This controlled process eliminates the internal stress and greatly enhances the part's longevity.
The Hidden Risk: Chemical Compatibility and Stress Cracking

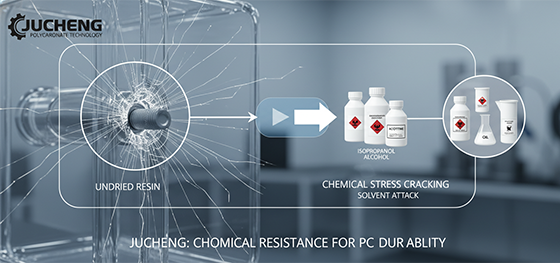

Polycarbonate is highly resistant to water and many acids, but it is extremely sensitive to organic solvents like acetone, alcohol, and many cleaning agents. The danger is that chemical exposure, combined with pre-existing internal stress, causes a catastrophic failure known as Chemical Stress Cracking (CSC).
Failure Mechanism: A PC part with high internal stress (from poor molding) is exposed to a mild solvent (e.g., cleaning with alcohol). The solvent attacks the stressed molecular bonds, and the part cracks or crazes instantly, often hours or days after manufacturing.
Medical/Automotive Risk: This is a major concern for medical device enclosures that must be cleaned frequently with disinfectants, or automotive components exposed to fluids and cleaning sprays.
Mitigation: CSC is mitigated by ensuring the initial molding is stress-free (Factor 2) and by using PC grades specifically designed to withstand chemical exposure (e.g., certain resin types for hospital environments).
Achieving Optical Mastery: Molding Flawless Transparent PC

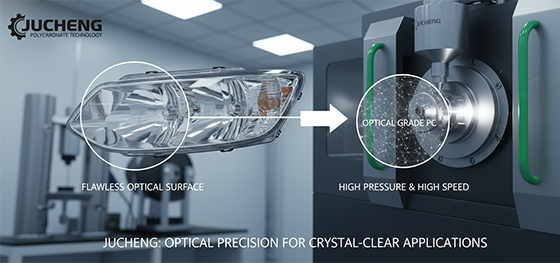

Manufacturing transparent PC parts—such as lenses or lighting components—introduces the additional challenge of achieving perfect surface quality and eliminating microscopic flow marks:
Tooling Finish: The mold cavity must be polished to an SPI A-1 mirror finish. The mold is essentially a mirror, and any flaw will transfer directly to the transparent part.
High-Speed/High-Pressure Injection: To prevent the "skin" of the melt from freezing and causing flow marks, PC requires high injection speeds and high holding pressure to ensure the part fills quickly and uniformly, preserving its optical integrity.
Quality Control: Optical parts are subject to specialized inspection protocols far beyond simple CMM checks, verifying light transmission, clarity, and the absence of internal or surface defects.
Polycarbonate manufacturing is a specialized field where the integrity of the material is constantly tested by moisture, temperature, and chemicals. Jucheng Precision Technology, with its certified expertise in pre-drying, stress-relief annealing, and optical-grade tooling, ensures your PC components maintain their legendary impact strength and structural integrity.
Master your PC project's integrity. Contact us today to discuss high-precision Polycarbonate Injection Molding for your critical components.
