Imagine standing in a high-tech laboratory, looking at two rectangular blocks of clear plastic. They appear identical. They catch the ambient light with the same crystalline brilliance. They are both roughly half the weight of glass. To a casual buyer, they are interchangeable. But to an aerospace engineer or a medical device designer, they represent two completely different philosophies of survival. One is an optical artist, designed to let light pass through with zero distortion; the other is a rugged bodyguard, built to take a bullet and keep standing. This is the enduring engineering riddle of polycarbonate vs acrylic.
Success in CNC Polycarbonate Machining and its acrylic counterpart depends on recognizing that "clear" is not a physical property—it is just a visual coincidence. Under the surface, these materials have different molecular backbones that dictate how they react to heat, impact, and the sharp edge of a cutting tool. At Jucheng Precision, we don't just follow the specifications on a drawing; we act as material auditors. We know that choosing the wrong transparent polymer can lead to shattered shields, cloudy lenses, or expensive assembly failures.
Whether you are designing a high-speed machine guard that must protect operators from flying debris or a complex light pipe for a luxury vehicle dashboard, understanding the trade-offs is essential. This guide breaks down the performance gaps between Polycarbonate (PC) and Acrylic (PMMA), ensuring your next production run is optimized for both durability and optical excellence.
content:
Impact Strength: The Unbreakable vs. The Brittle

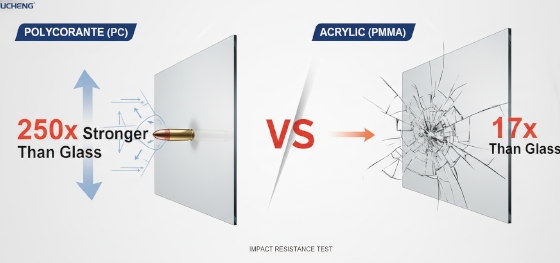

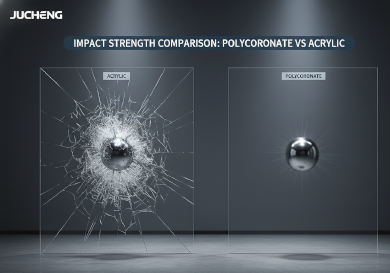

If your part lives in a "danger zone," the decision is usually made in the first second of impact. Polycarbonate is the heavyweight champion of toughness. It is often referred to as "bulletproof plastic" for a reason. At a molecular level, its polymer chains are entangled and flexible, allowing the material to absorb massive amounts of kinetic energy by deforming slightly rather than fracturing. PC has an impact strength roughly 250 times that of standard glass and 30 times that of acrylic. In the polycarbonate vs acrylic battle, PC is the material that survives a sledgehammer blow.
Acrylic, or PMMA, is a rigid, brittle polymer. While it is 17 times stronger than glass and sufficient for many decorative applications, it has very low "notch sensitivity." If an acrylic part is scratched or has a sharp internal corner, a sudden impact will cause it to shatter into sharp, dangerous shards. This makes it unsuitable for safety guards or structural components in heavy machinery. At Jucheng Precision, we steer our clients toward CNC Polycarbonate Machining for any application where human safety is involved, ensuring that even if the part fails, it fails gracefully by denting rather than exploding into needles.
Optical Fidelity: Light Transmission Realities

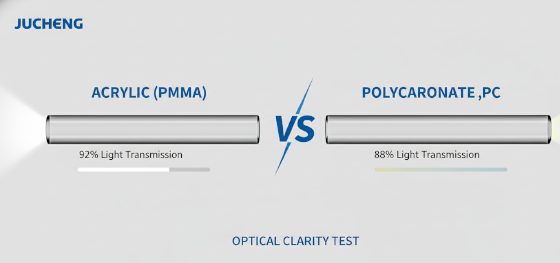

When it comes to pure transparency, the roles are reversed. Acrylic is the gold standard for optical clarity. It has a light transmission rate of 92%, which is actually higher than most standard glass. It is "water-white," meaning it has zero inherent color tint. When you look through a six-inch thick block of polished acrylic, the image on the other side remains vivid and true-to-life. This is why it is used for high-end museum displays, aquarium tanks, and light pipes.
Polycarbonate has a slightly lower light transmission rate, typically around 88%. More significantly, it often carries a very faint blue or grey tint, which becomes more pronounced in thicker sections. Furthermore, PC is naturally susceptible to UV radiation; without specialized UV-stabilized coatings, it will eventually turn yellow and become brittle in direct sunlight. Acrylic, by contrast, is naturally UV-stable and will stay crystal clear for decades outdoors. If your project involves a lighting lens or a visual display where clarity is the only metric that matters, the superior optical fidelity of acrylic makes it the clear winner.
Scratch Resistance and Surface Hardness

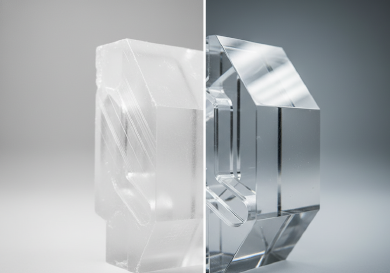

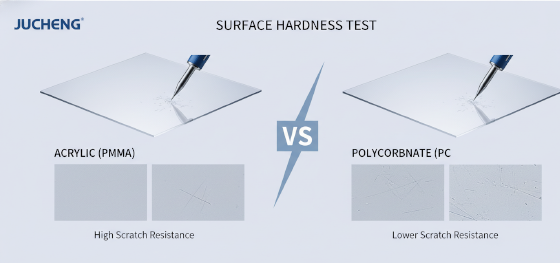

Surface durability is an invisible factor that ruins a design long after it has left the shop. Acrylic is a much harder material than polycarbonate. On the Rockwell M scale, it ranks significantly higher, which translates to excellent scratch resistance. You can wipe an acrylic panel with a dry cloth repeatedly without leaving a "cloud" of micro-scratches. This inherent hardness also allows acrylic to be polished to a mirror-like shine using mechanical buffing wheels—a process that is far more effective on acrylic than on the softer surface of PC.
Polycarbonate is a relatively soft plastic. It is prone to "scuffing" even from minor contact. A stray fingernail or a rough cleaning sponge can leave permanent scars on an untreated PC surface. To solve this, many of JUCHENG's clients specify "hard-coated" polycarbonate, which adds a thin, glass-like layer to the surface. However, this increases the material cost and makes secondary machining more difficult. In the polycarbonate vs acrylic comparison, if your part will be frequently handled by consumers or cleaned with abrasive cloths, the natural hardness of acrylic provides a more durable and lasting aesthetic finish.
Machining Behavior: Brittle Cuts vs Gummy Chips
Inside the CNC machine, the polycarbonate vs acrylic choice changes everything from spindle RPM to tool geometry. Acrylic is a "clean" cutter. Because it is brittle, the chips fracture instantly upon contact with the tool and fly away in cold, crisp flakes. This allows Jucheng Precision to achieve exceptional surface finishes directly off the mill. However, that same brittleness means we must be very careful with "entry and exit" strategies to prevent the material from chipping at the edges. Sharp, positive-rake tools are mandatory to slice through the plastic rather than pushing it.
Polycarbonate behaves like a "gummy" material. Because it is designed to absorb energy, it resists being sheared. Instead of fracturing into flakes, it peels away in long, stringy ribbons. These ribbons can wrap around the spindle and trap heat, leading to the plastic melting and welding itself to the cutter. Success in CNC Polycarbonate Machining requires lower speeds, higher chip loads, and aggressive cooling—usually with cold air blasts—to keep the material from softening. While PC is harder to polish to an optical finish than acrylic, it is much easier to machine into complex, thin-walled structures without the risk of the part snapping on the fixture.
Thermal Limits and Chemical Stability

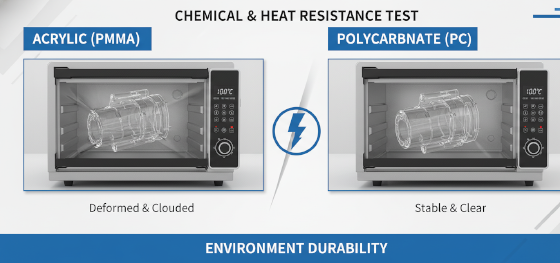

Environmental exposure is the final filter. Polycarbonate has a much higher heat resistance than acrylic. It can withstand temperatures up to 135°C (275°F) before it begins to soften, making it suitable for automotive engine bay covers or high-intensity lighting housings. Acrylic begins to lose its shape at roughly 80°C (176°F), which limits its use in any high-heat environment.
However, acrylic wins on chemical stability. It is much more resistant to standard cleaning chemicals, oils, and greases. Polycarbonate is notoriously sensitive to chemicals; exposure to common alcohols or certain cleaning solvents can trigger "crazing"—thousands of tiny hairline cracks that destroy both the strength and clarity of the part. At Jucheng Precision, we always ask about the final cleaning protocol. If your part will be sterilized with harsh chemicals or cleaned in a commercial environment, we may recommend acrylic or a chemically-resistant PC grade to ensure the part doesn't fail a month after installation.
JUCHENG’s Verdict: Matching Material to Mission
To simplify your material selection, Jucheng Precision uses a definitive "Mission Matrix" during our design consultations. We weigh the physical realities against your specific application to ensure the lowest scrap rate and the highest field reliability.
Choose Acrylic (PMMA) if:
• The primary requirement is optical clarity and light transmission (92%).
• Surface scratch resistance and the ability to buff to a mirror shine are vital.
• The part will spend years in direct sunlight (natural UV stability).
• The budget requires a lower material cost for non-impact parts.
Choose Polycarbonate (PC) if:
• Impact resistance is mandatory for human safety or structural integrity.
• The operating temperature will exceed 80°C.
• The part features very thin walls or complex geometries that might snap in acrylic.
• You need a "bulletproof" enclosure for high-value electronics.
Jucheng Precision maintains a deep inventory of both high-quality cast acrylic and engineering-grade polycarbonate. Our 5-axis CNC Polycarbonate Machining centers are specifically calibrated for the thermal and chemical nuances of these materials, ensuring that your clear parts arrive precisely as intended. We bridge the gap between design theory and manufacturing reality, delivering transparent components that work. Contact our engineering team today for a free DFM review and see how our plastic manufacturing expertise can clarify your next project.
