6063 Aluminum: Crafting Perfect Surfaces and Complex Profiles
Views: 1 Author: Allen Xiao Publish Time: 2025-12-23 Origin: Site
How does a solid piece of metal flow like liquid, creating the impossibly complex and slender profiles of a modern skyscraper's window frame? How does it achieve a surface finish so smooth and perfect that it becomes the signature of the world's most valuable tech brand?
This is not the work of a brute-force strong metal. This is the work of an artist. A material prized not for its raw power, but for its grace, its formability, and its ability to take on a beautiful skin.
This is the world of 6063 aluminum, the "architectural alloy." The process of aluminum 6063 machining is often the final, precise touch on a material that is born to be beautiful.
6063 is an aluminum alloy, with magnesium and silicon as its primary alloying elements, similar to its stronger cousin, 6061. But the recipe is different. It is specifically formulated for one superpower: extrudability.

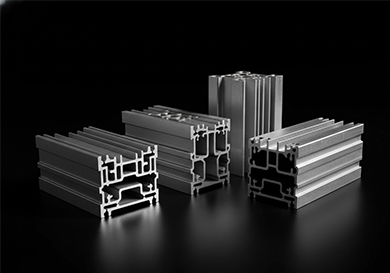

Extrusion is a process where a hot, softened billet of aluminum is forced through a steel die with a complex opening. It is like squeezing toothpaste from a tube. The aluminum comes out as a long, continuous profile with the exact cross-sectional shape of the die.

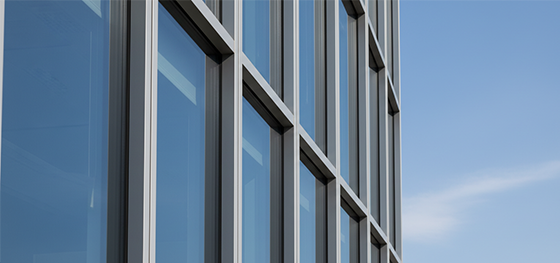

6063 is the undisputed king of this process. It flows beautifully, allowing it to be pushed into incredibly complex and intricate die shapes. This is how the complex, multi-chambered profiles for modern window frames, door frames, and curtain wall systems are made. It has good strength, but its main purpose is to create beautiful, precise shapes.
A Machinist's Perspective: Working with a Softer Alloy
Most of the time, the process of aluminum 6063 machining is a secondary operation performed on an already extruded profile. We are not starting from a solid block. We are starting with a complex shape and adding the final, precise features.
Compared to other popular CNC machining materials like 6061 or 7075, 6063 is noticeably softer. From a machinist's perspective, this is a mixed blessing.
The good news is that it is very easy to cut. It allows for high machining speeds and puts very little wear on the cutting tools. The challenge, however, is that its softness can make it "gummy." It can be difficult to achieve a crisp, burr-free edge without the right tools and techniques.
An expert machinist will use extremely sharp, often coated tools, and a very high spindle speed to get a clean shear cut. Proper clamping is also critical to support the often-thin walls of the extrusion during the machining process.
Its True Superpower: The Perfect Finish
The real reason designers fall in love with 6063 is its surface. It has the best surface finish of all the common aluminum alloys.
Its fine grain structure and chemical composition make it the perfect canvas for anodizing. It produces a visually appealing and extremely uniform anodized finish.

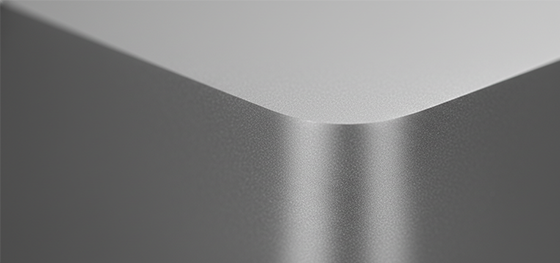

This is the secret behind the look of many high-end consumer electronics. The beautiful, smooth, matte silver finish on an Apple iMac or MacBook, for example, is the signature of a perfectly bead-blasted and clear-anodized 6063 aluminum extrusion. This alloy takes this specific finish better than any other.
Choosing Your Workhorse: 6063 vs. 6061
So, when do you choose the "Architectural Alloy" 6063, and when do you choose the "Structural Workhorse" 6061?
You choose 6063 when your primary concerns are the complexity of the extruded shape and the final cosmetic surface finish. If your part is a window frame, a decorative trim piece, or a high-end electronics enclosure, 6063 is the superior choice. Its ability to be extruded into complex shapes and its flawless anodizing response are its key advantages.
You choose 6061 when your primary concern is strength and general-purpose fabricability. 6061 is significantly stronger than 6063. It is a better choice for structural parts that will be under a higher load. It is also much easier to weld. If your part is a machined bracket or a welded frame, 6061 is the more robust and logical choice.
