Ceramic Injection Molding: Advanced Techniques and Uses
Views: 3 Author: Allen Xiao Publish Time: 2025-10-07 Origin: Site
Imagine if you could squeeze clay into any shape you want, no matter how complicated, and then turn it into a super-strong, finished piece. That's kind of what Ceramic Injection Molding (CIM) is! It's a cool way to make incredibly detailed and strong ceramic parts, kind of like how plastic toys are made, but for much tougher stuff. This process is a superhero in factories, making tiny, complex parts for things like phones, cars, and even medical tools.
Let's break it down. Ceramic Injection Molding (or CIM) is like baking a super detailed cake, but with clay instead of batter.
First, you make the "dough." You mix super-fine ceramic powder (like super-fine sand) with a special sticky "wax" that melts when heated. This mixture is called the feedstock.
Next, you "inject" the dough. The warm, goopy mixture is squeezed (injected) under high pressure into a metal mold. The mold is like a cookie cutter, but it can make very complex 3D shapes.
Then, you remove the "wax." The shaped part is cooled down. Then, it goes through a special process to slowly remove all the sticky wax. This leaves a very fragile "green" part that is just pure ceramic powder held in the right shape.
Finally, you bake it to make it strong! The part is fired in a super-hot oven called a kiln. This is called sintering. The heat makes all the tiny ceramic particles stick together forever, shrinking the part a little and turning it into a solid, super-strong piece. This is how we get the final ceramic injection molded components.
Where Do We See This Super-Process?
You can find ceramic injection molding applications everywhere! Because the parts are so strong, can handle heat, and don't conduct electricity, they are used in many important things:
Medical World: For making tiny parts for surgery tools and replacement bones or teeth because our bodies don't react badly to them.
Electronics: Inside your phones and computers, these parts help keep things from getting too hot and act as insulators.
Cars and Airplanes: For sensors and parts inside engines that get really, really hot.
Everyday Life: In things like watch cases and even some jewelry!
Why is This Method So Great?
There are many advantages for injection molding ceramics:
Complex Shapes: It can make shapes that are impossible to make by hand or with other machines.
Mass Production: You can make thousands of identical parts, very quickly.
Super Precise: Every single part comes out looking exactly the same, which is very important for machines.
Strong and Smooth: The finished parts are very strong and have a very smooth surface right out of the mold.
Less Waste: You use almost all the material, so there's not much trash.

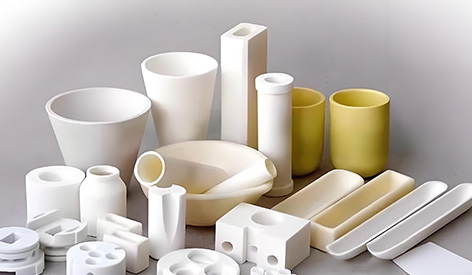

What Are These Super-Parts Made Of?

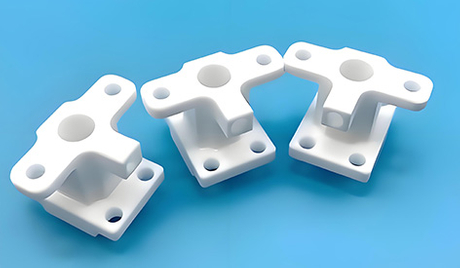

Many different materials in ceramics can be used. One of the most popular is alumina ceramic injection molding. Alumina is a type of ceramic that is very hard, doesn't conduct electricity, and can handle high heat, making it perfect for many jobs. Other super-materials used are Zirconia (known for being extra tough) and Silicon Nitride (for the hottest environments).
The Machine That Does the Magic

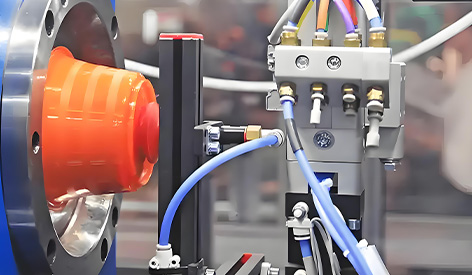

The ceramic injection molding machine is the superstar of this whole process. It looks a lot like a machine that makes plastic toys, but it's built to be tougher because ceramic mixture is rough. It heats up the "dough," injects it into the mold with great force, and then helps cool it down. It's a powerful and smart machine!
The Final Touch-Up

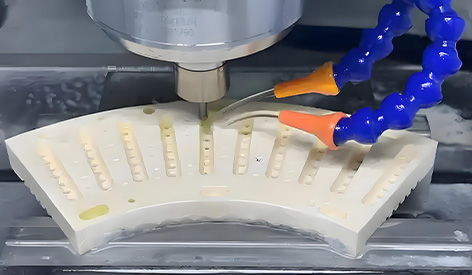

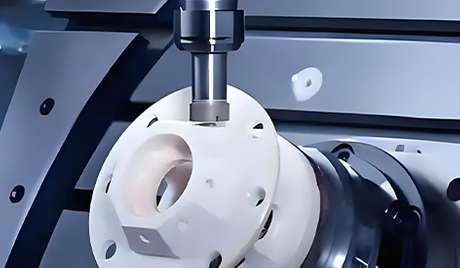

Sometimes, after the part is baked and super strong, it needs a little extra work to be perfect. This is where ceramic CNC machining comes in. Think of it as a super-smart robotic sculptor that uses diamond-tipped tools to shave off tiny bits of the ceramic. This makes the part even more precise, smooths it out, or adds tiny holes that the mold couldn't make. It's the final polish for a perfect part.
In summary, ceramic injection molding is a transformative technology that bridges the gap between design complexity and manufacturing efficiency. From its core process to its diverse applications—such as in alumina ceramic injection molding—CIM offers significant advantages, including cost savings, material versatility, and high precision. The integration of specialized ceramic injection molding machines and post-processing techniques like ceramic CNC machining further enhances its capability to produce reliable, high-performance components. As industries continue to evolve, the role of materials in ceramics will expand, driving innovations in CIM. By adopting this method, manufacturers can stay competitive in a dynamic market, leveraging the unique properties of ceramics to solve complex engineering challenges. For those seeking to innovate, investing in CIM expertise and equipment promises long-term benefits in quality and productivity.
