Injection Molding Design: Preventing Defects Before They Happen
Views: 1 Author: Allen Xiao Publish Time: 2025-12-11 Origin: Site
The quality of an injection molded part is not determined when the plastic is injected. It is not determined when the mold is polished. It is determined months earlier, on a computer screen, by you.
The vast majority of Injection molding defects are not manufacturing errors. They are design errors. They are tiny, hidden flaws in the CAD model that are destined to become expensive, physical problems.
But there is good news. These problems are almost entirely preventable. The art and science of preventing them is called Design for Manufacturability, or DFM. A good Injection molding design is a good DFM design. This guide will walk you through its most important rules.

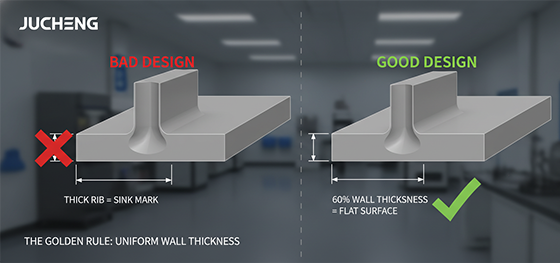

If you remember only one rule, let it be this one. A good plastic part has walls that are all the same thickness, or as close to it as possible.
Why is this so important? Because molten plastic shrinks as it cools. If you have a thin wall next to a very thick wall, the thick wall will cool much slower. It will shrink more. As it shrinks, it will pull on the already-solid thin wall.
This causes two major problems. First, "sink marks." These are ugly depressions on the surface of the part, opposite the thick section. Second, "warp." The entire part can bend and distort as these uneven forces battle each other. A warped part will not assemble correctly. Keeping your walls uniform is the number one way to prevent these defects.
The Law of Release: Draft Angles
The second most important rule is the law of release. A plastic part must be able to get out of its steel mold cleanly.
As the plastic cools, it shrinks and grips tightly onto the core of the mold. If your part's walls are perfectly vertical (90 degrees to the parting line), there is a huge amount of friction when the ejector pins try to push it off.
This can cause ugly "drag marks" or scratches on your beautiful surface finish. In a worst-case scenario, the part can get completely stuck in the mold.

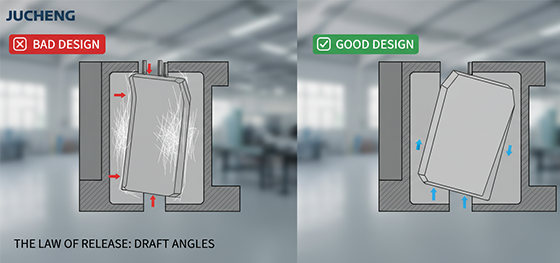

The solution is a "draft angle." This means adding a small taper, typically 1 to 2 degrees, to all the vertical faces. This tiny angle ensures that the moment the part starts to eject, it immediately breaks contact with the mold wall. This guarantees a smooth, clean release and a perfect surface finish.
The Secret to Strength: Ribs and Bosses
So, if you cannot have thick walls, how do you make a part strong and stiff? The answer is to use geometry to your advantage.

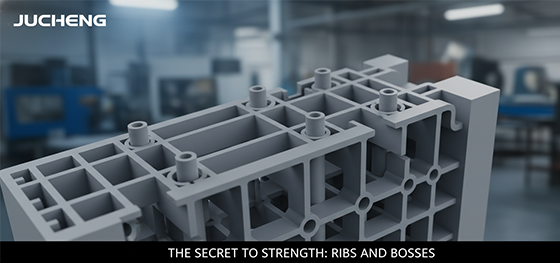

Instead of one thick, heavy wall, a smart designer uses a thin wall that is supported by a network of thin "ribs." These ribs act like the support beams in a building. They add a huge amount of stiffness and strength with very little extra material. This is the secret to creating a part that is both strong and lightweight.
"Bosses" are another key feature. These are tall, cylindrical features used to receive screws or mounting pins. A good Injection molding design connects these bosses to the main walls using, you guessed it, ribs. This provides support and prevents the boss from being knocked over or breaking off.
The Partner You Need: Beyond a Simple Mold Maker
These rules sound simple. But applying them to a complex part can be very tricky. This is why the partnership with your manufacturer is so important.
A simple mold maker will just take your file. If it has a design flaw, they will build a flawed mold that produces flawed parts. The problem is now your problem.

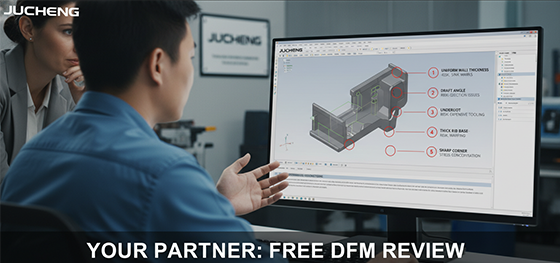

A true manufacturing partner, like JUCHENG, has a different philosophy. Our service starts with our Free DFM Review. Our expert engineers will act as your second set of eyes. We will analyze your part for uniform wall thickness, proper draft angles, and hundreds of other potential issues.
We will provide you with a detailed report showing any risks and offering clear suggestions for improvement. This collaborative process is the most valuable part of any Injection Molding project. It is how we prevent defects before they are ever created in steel. It is your ultimate guarantee of a successful product.
