Finding the Breakeven Point: When to Switch to Injection Molding
Views: 2 Author: Allen Xiao Publish Time: 2025-12-11 Origin: Site
You are launching a new product. You have a limited budget. You get your first quote for Injection Molding, and you see two numbers. A very large number for the "tooling." And a surprisingly small number for the "part price."
How do you make sense of this? Is the high upfront cost worth it? When does it become smarter than 3D printing?
Understanding the Injection molding cost is not just accounting. It is a strategic calculation. It is about understanding the powerful economic model of mass production. This guide will break down that model for you.
The biggest number on any injection molding quote is the tooling. This is the one-time cost to create the mold. This mold is a masterpiece of precision engineering, and its cost is driven by several factors.
First is complexity. A mold for a simple, flat part is relatively cheap. A mold for a complex part with many undercuts (requiring side-actions) and intricate features will be much more expensive. More complexity means more steel to cut and more skilled labor.
Second is the mold material. For very high volumes (millions of parts), the mold must be made from hardened tool steel. This is very expensive and slow to machine. But for lower volumes (thousands to tens of thousands), a mold made from softer pre-hardened steel or even aluminum can be a much more cost-effective option.
Third is the number of cavities. A single-cavity mold makes one part per cycle. A multi-cavity mold might make 4, 8, or 16 parts per cycle. A multi-cavity mold is much more expensive to build, but it dramatically lowers the part price later on.
Unpacking the Part Price
Once the mold is paid for, the price per part becomes incredibly low. This price is driven by two simple factors: material and time.
The first is the cost of the raw plastic material. The part price includes the weight of the plastic needed to make your part. An expensive engineering plastic will result in a higher part price than a cheap commodity plastic.
The second, and most important, factor is machine time. The part price is directly related to how long it takes to run one cycle. This "cycle time" is a combination of the injection time, cooling time, and ejection time. A part with very thick walls will need a very long cooling time, which increases the cycle time and the cost.
A good manufacturer works to get this cycle time as low as possible through smart mold design and an efficient process. This is how you get a part price of just pennies.
Finding Your Breakeven Point
So, when does it make sense to pay the high upfront tooling cost? This is a "breakeven" calculation.
Imagine you need 1,000 units of your part. 3D printing might cost you $30 per part, for a total of $30,000. There is no tooling cost.
For injection molding, the tooling might cost $10,000, and the part price might be $2. The total cost for 1,000 units would be $10,000 + (1,000 x $2) = $12,000. In this case, injection molding is the much cheaper option.
But if you only needed 100 units, 3D printing would cost $3,000. Injection molding would cost $10,000 + (100 x $2) = $10,200. Here, 3D printing is the smarter choice.

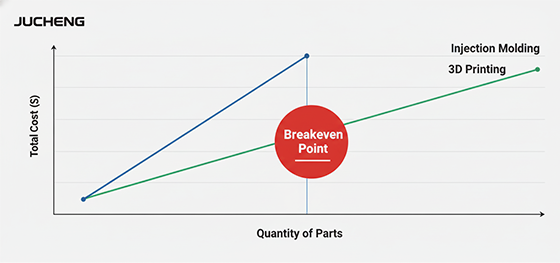

Somewhere between 100 and 1,000 units is the "breakeven point" where the total cost lines cross. Finding this point is the key to making a smart manufacturing decision.
A Partner in Smart Investment
For startups and companies doing low-volume production, that high upfront tooling cost can be a major barrier. This is where choosing the right partner is critical.
A good partner does not just offer one expensive, high-volume tooling option. At JUCHENG, we specialize in low-volume manufacturing solutions.

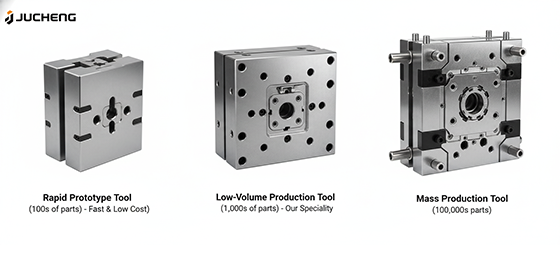

We can create simpler, lower-cost molds from pre-hardened steel or aluminum. These "bridge" tools are perfect for producing a few thousand parts. They get you to market fast, without the massive investment of a full production tool.
Understanding the Injection molding cost is about understanding your options. We work with you as a partner. We analyze your project volume and your budget. We help you make the smartest investment to get your product off the ground.
