In the periodic table of engineering materials, few elements command as much respect—and caution—as Beryllium. When alloyed with copper, it creates C17200 (Alloy 25), a material often described as the "Super Metal." It possesses the strength of hardened steel and the electrical conductivity of copper. It is the ultimate solution for components that must endure extreme cyclic fatigue while conducting high currents or dissipating massive amounts of heat.
However, this performance comes with a serious warning label. The dust generated during machining beryllium copper c172 is toxic and can cause severe lung conditions if not managed correctly. This duality—unmatched performance versus health risk—scares many machine shops away.
At Jucheng Precision, we do not shy away from this challenge. We have implemented strict Environmental, Health, and Safety (EHS) protocols to handle C172 safely. This guide will explore the properties of this unique alloy, the critical safety measures we employ, and why it remains the gold standard for mold makers and aerospace engineers.
content:

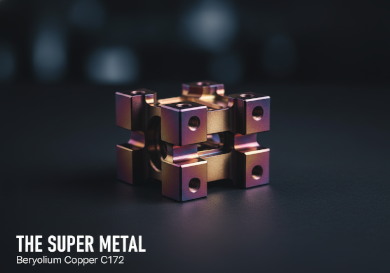

The "Super Metal": Strength Meets Conductivity
C172 Beryllium Copper is the strongest of all copper-based alloys. By adding approximately 1.8% to 2% beryllium to the copper matrix, manufacturers create a material that responds incredibly well to precipitation hardening.
Once heat-treated, C172 can achieve tensile strengths exceeding 1400 MPa (200,000 psi) and hardness levels up to Rockwell C45. To put this in perspective, that is harder than many stainless steels and stronger than Titanium Grade 5. Yet, unlike steel or titanium, C172 retains significant electrical and thermal conductivity (approximately 20-25% IACS).
This unique combination means a C172 part can act as a high-current electrical spring that never relaxes, or a plastic mold insert that withstands millions of clamping cycles while cooling the plastic part twice as fast as tool steel.
The Safety Critical: Managing Beryllium Dust
We must address the elephant in the room: Safety. Solid beryllium copper is perfectly safe to handle. You can hold it, touch it, and assemble it without risk. The danger arises only during manufacturing processes that create airborne particles, such as grinding, sanding, or dry machining.
Inhaling fine beryllium dust can lead to Chronic Beryllium Disease (CBD), a serious and scarring lung condition. This is why many general machine shops refuse to quote machining beryllium copper c172 projects. They simply lack the infrastructure to mitigate the risk.

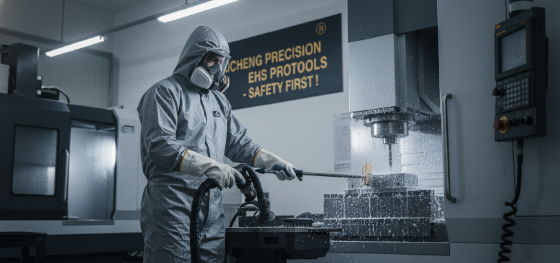

At Jucheng Precision, we solve this through "Wet Machining." We never machine C172 dry. We flood the cutting zone with high-pressure coolant. This captures the microscopic dust particles at the source, trapping them in the liquid filtration system rather than letting them become airborne. This simple but strictly enforced rule ensures the safety of our team and compliance with international health standards.
Heat Treatment and Hardness Strategy
C172 is usually supplied in two states: "Solution Annealed" (soft) or "Hardened" (aged). Your machining strategy depends entirely on which state you are working with.
Strategy A: Machine then Age. For complex parts with intricate details, we purchase the material in the annealed state (TB00). In this state, it is relatively soft and gummy. We machine the part to near-net shape, leaving a small allowance for distortion. Then, we perform an age-hardening heat treatment (typically at 315°C for 2-3 hours). Finally, we perform a finish grinding or hard milling operation to bring the part to tolerance. This method yields the highest possible strength.
Strategy B: Machine Hard. For simpler geometries or mold inserts, we buy pre-hardened material (TD04). Machining C172 at Rockwell C40 is challenging but possible with modern carbide tooling. The benefit is that the part is finished immediately after machining, with no risk of heat treatment distortion. Jucheng's high-rigidity CNC machines are fully capable of this "Hard Milling" approach.
Machining Parameters and Tooling
How does one cut a metal that is tough like steel but conducts heat like copper? It requires a specific approach to tooling.
Because C172 work-hardens rapidly (similar to stainless steel), "babying" the cut is a mistake. Taking light, skimming cuts will only cause the tool to rub and glaze the surface, leading to instant tool failure. We use aggressive feed rates to ensure the cutting edge gets under the work-hardened layer.
We recommend using AlTiN (Aluminum Titanium Nitride) coated carbide tools. The coating provides heat resistance, which is crucial because the copper substrate sucks heat away from the chip and dumps it into the tool and the part. For tapping holes, we use specialized forming taps (roll taps) rather than cutting taps whenever possible, as this produces stronger threads and eliminates the issue of evacuating tough, stringy chips from deep holes.

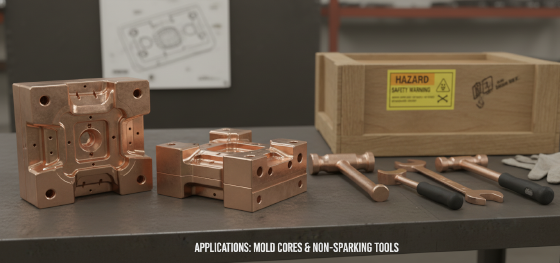

Key Applications: Mold Cores and Contacts
Why go through all this trouble? Because for certain applications, C172 has no substitute.
Plastic Injection Molding: This is Jucheng's most frequent request for C172. In a mold, the "core" (the part that shapes the inside of a plastic product) gets very hot. Steel cools slowly. C172 cools fast—up to 5 times faster than P20 tool steel. By using C172 inserts, molders can reduce their cycle time by seconds, which adds up to millions of dollars in savings over the life of a mold.
Non-Sparking Safety Tools: In oil refineries and grain silos, a steel wrench dropped on a concrete floor can create a spark and cause an explosion. Beryllium copper is non-magnetic and non-sparking. Tools made from this alloy are mandatory in hazardous environments.
Aerospace Bearings and Bushings: The alloy's resistance to galling and wear under heavy loads makes it ideal for landing gear components that must not seize up under extreme pressure.
JUCHENG's Safety Protocols
Outsourcing your beryllium copper parts is not just about capability; it is about liability. When you work with Jucheng Precision, you are partnering with a manufacturer that takes safety as seriously as quality.

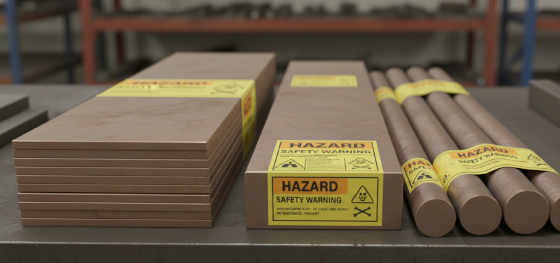

We manage the entire lifecycle of the material. Our scrap metal is segregated into sealed, labeled containers and disposed of via certified hazardous waste handlers. We conduct regular air quality monitoring in our workshop to ensure beryllium particulate levels remain well below OSHA limits.
Do not let the safety concerns of C172 limit your engineering designs. Let Jucheng handle the hazardous work while you reap the benefits of this incredible "Super Metal." Upload your drawings today for a secure, compliant, and competitive quote.
