What is Tool Steel and Why is it So Hard to Machine?
Views: 1 Author: Allen Xiao Publish Time: 2025-12-22 Origin: Site
Every engineer faces a constant dilemma. A choice between cost and performance. For most parts, a good balance can be found with materials like mild steel or alloy steel.
But what if the job is too tough for them? What if the part needs to withstand incredible pressure, extreme abrasion, and high temperatures, day after day, for millions of cycles?
In these situations, compromise is not an option. You need the ultimate performer in the world of metals. You need Tool Steel. And the process of Tool Steel Machining is the ultimate test of a manufacturer's capability.
What is Tool Steel? The name gives you the biggest clue. It is a family of steels designed specifically to be made into industrial tools. Tools that cut, press, stamp, and form other materials, including other, softer steels.

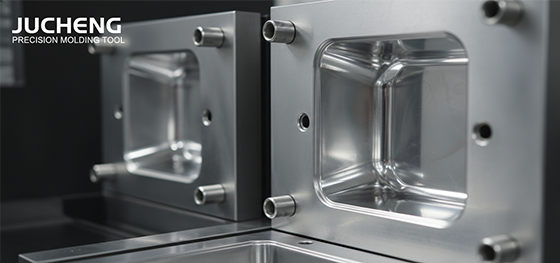

Its most common application is in mold and die making. An injection mold for making plastic parts must withstand immense pressure and high temperatures. It must have a very hard, polished surface that can be used to make millions of parts without wearing out. Only tool steel can do this job.
Similarly, a stamping die used to cut shapes from sheet metal must be harder than the metal it is cutting. Again, this is a job for tool steel. Grades like A2 and D2 are the workhorses of the tool and die industry. H13 is a special grade designed to survive the thermal shock of die casting.
Secrets Within the Steel
What gives tool steel its incredible properties? It is a combination of a rich recipe and a precise cooking process.
First, the recipe. Tool steels have a high carbon content, which is the primary hardening element. They are also rich with alloying elements like chromium, vanadium, tungsten, and molybdenum. Each element adds a special property, like the ability to stay hard even when red-hot.

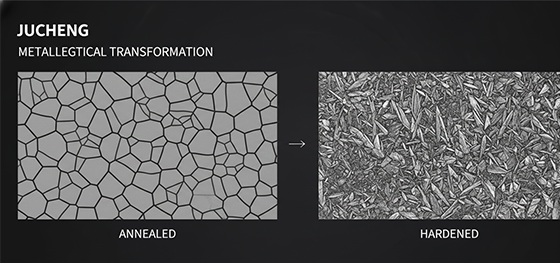

Second, the cooking process. This is a complex, multi-stage heat treatment. Through controlled heating and quenching, the internal crystal structure of the steel is transformed into a very hard and stress-resistant state called martensite. This heat treatment is a science in itself, and it is what truly unlocks the material's ultimate performance.
A Machinist's Ultimate Challenge

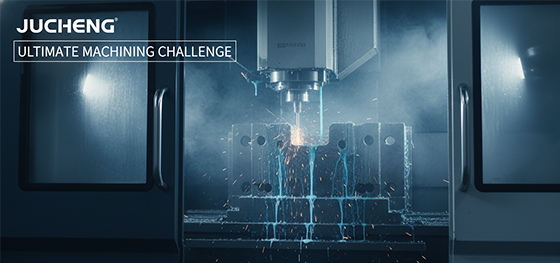

All the properties that make tool steel great also make Tool Steel Machining incredibly difficult. It is the ultimate test of a machine shop's skill and equipment.
The material is so hard that it fights back against the cutting tool. It causes tools to wear out extremely fast. It generates incredible heat and cutting forces.
Successfully machining tool steel requires a different philosophy. You need very rigid and powerful CNC machines. You need specialized carbide cutting tools with tough coatings. You must use slower, more deliberate speeds and feeds. And a constant flood of high-quality coolant is essential.
This difficulty is why the process is so expensive. You are paying for the tough material, the long machine time, the rapid tool wear, and most importantly, the deep expertise of the machinist. For features that a spinning tool cannot reach, we also utilize our in-house EDM capabilities, a critical part of our Rapid Tooling service.
Investing in Longevity
So, when is this high cost justified? It is justified when you are making an investment in longevity.
You do not choose tool steel to make a thousand parts. You choose it to make a million parts.
An injection mold or a stamping die made from tool steel will maintain its precision for an incredibly long time. It will produce consistent, high-quality parts cycle after cycle, year after year. It reduces downtime and maintenance costs.
The high upfront cost of a tool steel component is an investment. It is paid back over the long life of the tool. For any serious mass-production project, it is the only smart choice. At JUCHENG, our expertise in machining these elite CNC machining materials is at the heart of our world-class tooling services.
