Every successful hardware project starts with a choice. You have a vision on your screen. You need it in your hand. Most designers instinctively think of 3D printing. But the professional world is much wider.
Relying on a single tool limits your potential. You might get a part fast, but will it be strong enough for a stress test? Will the surface finish impress your investors? To win in product development, you must understand the full spectrum of Types of rapid prototyping available today.
This is about matching the method to the mission. It is about understanding that Rapid Prototyping is a strategic toolbox, not a single machine. JUCHENG helps engineers navigate this world by mastering the big three: Additive, Subtractive, and Formative manufacturing.
The hype around 3D printing is massive. It is easy to see why. The idea of "printing" an object feels like the future. But the reality on the factory floor is different. So, what are the different types of rapid prototyping that actually matter in professional production?
Think about your project goals. If you only need to see the shape of a new handle, a print is perfect. But what if that handle needs to hold a 50lb load? Or what if you need fifty copies that look exactly like the final product? In these cases, the 3D printer might be the slowest and most expensive path. Success begins when you stop seeing every problem as a printing job.
Engineers must evaluate three fundamental paths. Additive manufacturing for complexity. Subtractive manufacturing for strength. Formative manufacturing for volume and finish. This balanced view is what creates high-performance hardware.

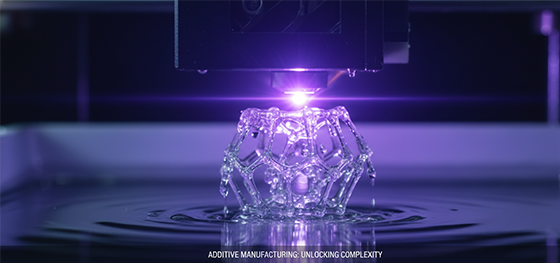

Building Layer by Layer: Additive Methods
Additive manufacturing is the king of complexity. It builds parts from the ground up, adding material only where it is needed. This path is essential when your design has internal channels, hollow structures, or shapes that a drill bit simply cannot reach.
SLA (Stereolithography) is the go-to for detail. It uses a laser to cure liquid resin. The surface is smooth and the details are razor-sharp. It is perfect for visual models and fit-checks. SLS (Selective Laser Sintering) is the choice for durability. It uses a laser to fuse nylon powder. The parts are strong enough for functional testing and do not require support structures, giving you total design freedom.
For metal parts, DMLS (Direct Metal Laser Sintering) allows you to "print" in aluminum or stainless steel. This is a game-changer for aerospace and medical industries. At JUCHENG, we use these technologies to provide the fastest possible turnaround for parts that geometry-wise would be impossible to make any other way.

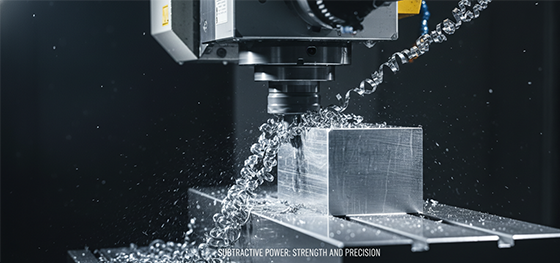

Carving with Precision: Subtractive Power
When strength and material honesty are non-negotiable, you turn to subtractive manufacturing. This is the world of CNC machining. We start with a solid block of the exact material you will use in production. Real ABS. Real Aluminum 6061. Real PEEK.
A 5-axis CNC machine then carves the part out. Because the part is carved from a solid block, it has no layers. It is isotropic. It has the full structural integrity of the raw material. If you need a prototype for a high-stress mechanical test, a drop test, or a thermal test, CNC is the only professional choice.
CNC also offers the tightest tolerances. We can hold dimensions to within microns. This precision is vital for parts that must fit into complex assemblies. At JUCHENG, our 150+ machines allow us to deliver these high-strength parts with the speed of a prototype shop but the quality of a production facility.

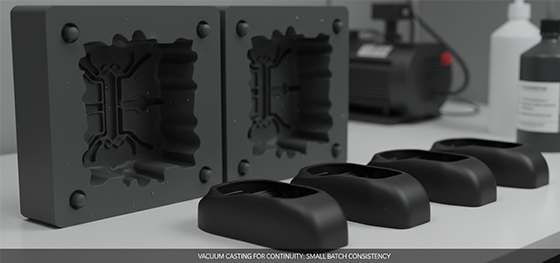

Casting for Continuity: Formative Techniques
The third path is formative manufacturing, specifically Vacuum Casting. This is the bridge between a single part and mass production. It is a smart way to get 20 to 50 high-quality copies of a part without the massive cost of a steel mold.
We start with a master pattern, usually made by CNC or SLA. We then create a flexible silicone mold around it. We inject liquid polyurethane resins into the mold under a vacuum to remove all air bubbles. The results are incredible. The surface finish and color consistency are identical to high-end injection molded parts.
This is the secret weapon for marketing samples and user trials. You can have fifty products that look and feel ready for the shelf, allowing you to gather market data while your production tooling is still being built. It provides a level of cosmetic perfection that 3D printing cannot match.

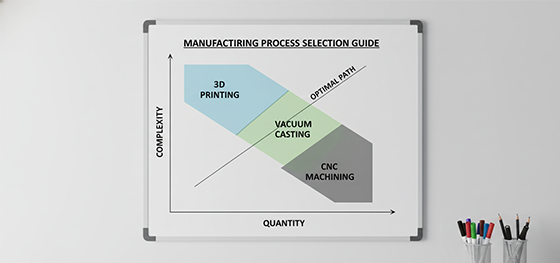

Selecting the Best Path for Your Project
Choosing between these paths is a strategic decision. It is not about which technology is "better." It is about which technology is right for right now.
Use 3D printing for the "napkin sketch" stage. When you need to fail fast and iterate hourly. Use CNC machining when your design is stable and you need to prove it works in the real world with real materials. Use Vacuum Casting when you need to prove your market and show your product to the world.
The best developers use all three. They treat manufacturing as a language. JUCHENG is the partner that helps you speak it fluently. We provide the expertise and the machines to support you at every single stage of your journey.
Ready to turn your CAD file into reality? Contact Jucheng Precision today. Our engineers are ready to review your design and help you choose the smartest path forward.
