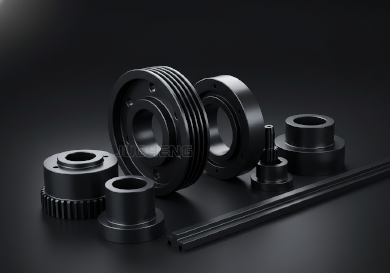

Mastering Black Nylon Machining: MoS2 and Carbon Additives
Views: 1 Author: Allen Xiao Publish Time: 2026-01-14 Origin: Site
In the catalog of engineering materials, color is rarely a matter of fashion. For most plastics, choosing a black variant is a deliberate engineering decision based on survival. While standard natural nylon (which is typically an off-white or cream color) is an excellent material for indoor mechanical parts, it often falls victim to the harsh realities of the outside world. Sunlight, friction, and heat are the natural enemies of polymers. To counter these forces, manufacturers introduce specific chemical additives that transform the material at a molecular level, resulting in the deep, ebony finish we recognize as black nylon.
Success in nylon cnc machining for high-performance applications often hinges on understanding that black nylon is not just "natural nylon with a dye." It is an enhanced composite designed for long-term durability. Whether it is filled with Carbon Black for UV stability or Molybdenum Disulfide (MoS2) for extreme lubricity, black nylon requires a specific technical approach during the manufacturing phase. At Jucheng Precision, we have perfected Black Nylon Machining for industries ranging from agriculture to aerospace, ensuring that every part not only looks professional but performs flawlessly under the most brutal conditions.
If your project involves components that will live under the direct glare of the sun or inside a high-speed gearbox without constant grease, black nylon is likely your material of choice. This guide dives into the hidden chemistry of black polyamides, the technical advantages of MoS2 additives, and the precision strategies JUCHENG employs to deliver aesthetic, high-accuracy parts for our global partners.
To understand why Black Nylon Machining is so critical, we must first look at what makes it black. There are two primary types of black nylon used in modern CNC manufacturing, each serving a distinct purpose. The first is Carbon Black filled nylon. Carbon black is a fine pigment that is mixed into the resin. Beyond providing color, it acts as a UV absorber, preventing the polymer chains from breaking down when exposed to light.

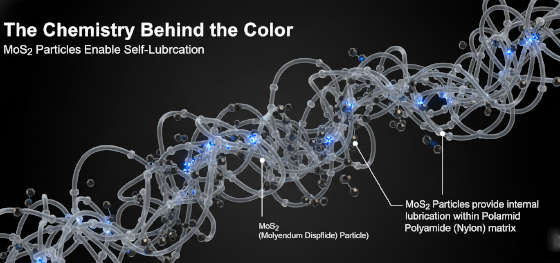

The second, and arguably more important for mechanical engineering, is MoS2-filled nylon (often called Nylon MD). Molybdenum Disulfide is a dry lubricant that is dispersed throughout the nylon matrix. These microscopic flakes of MoS2 give the material its characteristic dark grey or black metallic sheen. They act as internal ball bearings, drastically reducing the friction of the part. This chemical integration means that the self-lubricating properties are not just a surface coating—they are present through the entire thickness of the material. At Jucheng Precision, we identify the specific additive in your material choice during our DFM review to ensure that the material's internal chemistry aligns with your performance goals.

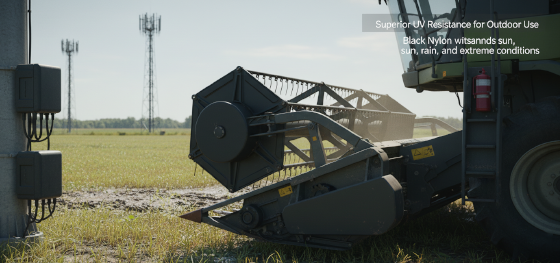

Superior UV Resistance for Outdoor Longevity
Photodegradation is the slow death of plastics. Natural nylon, when exposed to direct sunlight, undergoes a chemical reaction that causes "embrittlement." The material turns yellow, develops surface micro-cracks, and eventually loses its impact strength, causing parts to snap under loads they once easily carried. This is a primary failure mode for outdoor equipment in the agricultural and telecommunications sectors.
Black nylon effectively solves this problem. The carbon black particles act as a "sunblock" for the polymer. They absorb the ultraviolet radiation and dissipate it as heat before it can damage the long molecular chains of the polyamide. This UV stability ensures that parts machined by Jucheng Precision maintain their mechanical integrity for years, even in the harshest desert or marine environments. For our clients building outdoor sensors, drone components, or solar panel tracking mounts, black nylon is the mandatory standard for reliability. It represents the difference between a part that lasts one season and a part that lasts a decade.

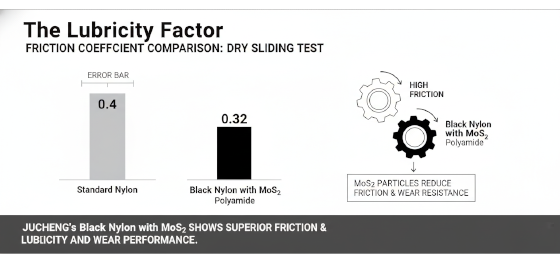

The Lubricity Factor: Why Black Nylon Runs Cooler
In high-friction applications like gears, wear strips, and bushings, heat is the ultimate enemy. When a standard nylon gear runs against a metal shaft, friction generates thermal energy. If that heat cannot be dissipated, the nylon softens, its dimensions shift, and the gear teeth eventually strip. Black Nylon Machining with MoS2-filled grades addresses this by significantly lowering the starting friction of the system.
The MoS2 particles increase the material's "crystallinity," making the black nylon slightly harder and more wear-resistant than its natural counterpart. More importantly, they provide a higher PV (Pressure-Velocity) limit. This means a black nylon bushing can operate at higher speeds or under heavier loads before reaching its failure temperature. At JUCHENG, we frequently recommend MoS2-filled black nylon for automated machinery components where external lubrication is messy or impossible to maintain. The parts run quieter, cooler, and longer, providing a maintenance-free solution that lowers the total cost of ownership for the end-user.
Machining Challenges and Aesthetic Control
From a machinist's perspective, nylon cnc machining on black grades requires a delicate touch to maintain aesthetic perfection. One of the most common issues is "stress whitening." If the cutting tool is dull or if the feed rate is too high, the localized pressure can cause the black nylon to turn a chalky white at the point of contact. These marks are permanent and ruin the professional look of the component.

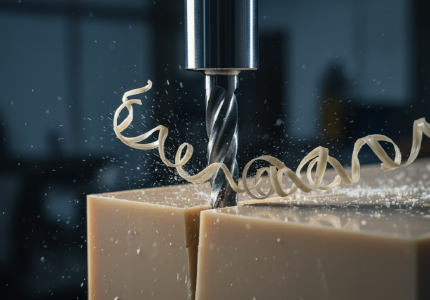

Jucheng Precision solves this by utilizing ultra-sharp, polished carbide tooling with high positive rake angles. We want to "shear" the material cleanly rather than "plowing" through it. We also manage the chip load meticulously. Because black nylon is often stiffer than natural nylon (due to the MoS2), the chips can be quite abrasive. We use high-pressure air and flood coolant to ensure these chips are evacuated instantly before they can re-cut and leave scratch marks on the finished surface. This attention to detail results in a deep, consistent black finish that is free of burrs and fuzz—a quality standard that JUCHENG is known for in the high-end industrial market.
JUCHENG's Strategic Stocking and Expertise

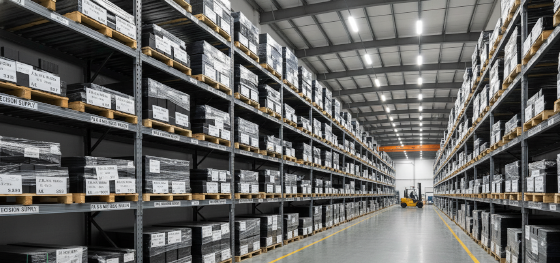

Material availability is often the bottleneck of production. At Jucheng Precision, we recognize that our clients in the agricultural, heavy equipment, and outdoor lighting industries cannot afford to wait weeks for specialty stock. We maintain a strategic inventory of high-quality black nylon 6 and 66, as well as MoS2-filled variants, in various rod and plate dimensions. This allows us to move from quote to production in days rather than weeks.
Our expertise extends to the management of nylon's greatest weakness: moisture absorption. Even though black nylon is more stable in sunlight, it is still hygroscopic. It still swells in humid environments. JUCHENG engineers provide custom tolerance advice based on your part's final destination. We calculate the expected moisture expansion and "over-machine" or "under-machine" accordingly, ensuring that your black nylon parts fit perfectly whether they are being installed in the humid tropics or the dry arctic. When you choose Jucheng Precision, you aren't just getting a shop that cuts plastic; you are getting an engineering partner that understands the long-term lifecycle of your components. Contact us today to see how our expertise in Black Nylon Machining can armor your designs against the elements.
