Guide to Machining Oil-Filled Nylon for Self-Lubricating Parts

Maintenance is the silent thief of industrial productivity. In complex automation systems, the requirement for constant manual lubrication of bearings, gears, and slide-ways leads to inevitable downtime and the risk of contamination. Imagine a conveyor system in a food processing plant where a single drop of leaked grease can ruin an entire production batch. The engineering world needed a material that could provide its own lubricant—a solid polymer that functions like an oiled bearing but without the mess or the maintenance. This is the innovation behind Machining Oil-Filled Nylon.

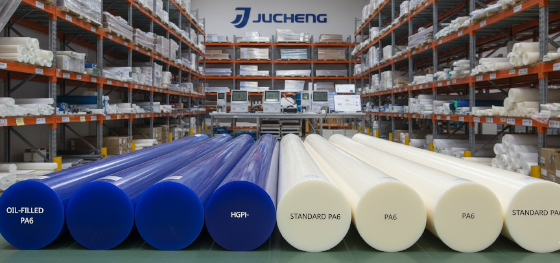

Oil-filled nylon is a specialized evolution of the polyamide family, where a liquid lubricant is permanently dispersed within the material matrix during the casting process. It represents a significant advancement in nylon cnc machining, offering a friction coefficient that is up to 50% lower than standard unfilled nylon. At Jucheng Precision, we specialize in transforming these slippery polymers into high-precision bushings, rollers, and wear strips that survive for years in environments where external lubrication is impossible or banned.

While the idea of a "slippery plastic" sounds simple, the manufacturing reality is highly technical. If the material is overheated during cutting, the integrated oil can weep out prematurely, ruining the part's surface finish. This guide dives into the molecular chemistry of self-lubricating nylons, the thermodynamic benefits of the oil-filling process, and the technical strategies JUCHENG uses to deliver maintenance-free components to the world’s leading automation manufacturers.

content:

The Integration of Lubricity: How It Works

Friction Reduction and Heat Control

Machining Challenges: Tooling and Residue Management

Critical Applications in Food and Automation

JUCHENG's Specialty Plastic Expertise

The Integration of Lubricity: How It Works

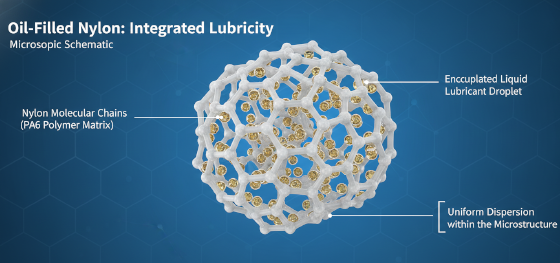

To appreciate why Machining Oil-Filled Nylon is so effective, we must understand its birth. Most plastics are "lubricated" after they are made by applying a coating or grease. In oil-filled nylon (often based on PA6C), the lubrication is not a coating—it is part of the material's DNA. During the anionic polymerization process, a specialized liquid lubricant—usually a mineral or vegetable-based oil—is introduced into the liquid monomer. As the nylon hardens, the oil is trapped in millions of microscopic pockets uniformly distributed throughout the entire part.

This "micro-encapsulation" means that the lubricant cannot leak or drip out during storage. However, as soon as the part encounters friction, the heat and pressure of the contact cause a microscopic amount of oil to be released to the surface. This creates a continuous, renewing film of "grease" at the interface of the two moving parts. Unlike a standard nylon part that might dry out or wear down after its initial greasing is gone, an oil-filled nylon component remains slippery until the day it is retired. At Jucheng Precision, we ensure that the raw stock we source has a perfect dispersion rate, so whether we are machining the surface or a deep internal bore, the self-lubricating properties remain consistent throughout the entire volume of the metal.

Friction Reduction and Heat Control

The primary enemy of any moving part is thermal energy. Friction creates heat, and heat leads to the expansion and eventual seizing of the mechanism. In standard nylon cnc machining, the "friction limit" of the material is a constant concern. If a standard Nylon 6 bearing runs too fast, the surface will eventually melt and weld itself to the shaft. Oil-filled nylon changes the thermodynamic rules of the game.

By lowering the friction coefficient from ~0.25 to as low as 0.12, the material generates significantly less heat during operation. This allows for higher PV (Pressure x Velocity) limits, meaning the parts can run faster or under heavier loads than their non-filled counterparts. Furthermore, the oil within the matrix acts as a secondary heat sink, slightly improving the material's thermal stability. For our clients in the high-speed conveyor industry, this means they can increase their line speeds by up to 20% just by switching their rollers and guides to oil-filled PA6C. JUCHENG uses precision testing to verify that our machined surfaces maintain this low-friction profile, ensuring that your dynamic systems run cooler and last longer.

Machining Challenges: Tooling and Residue Management

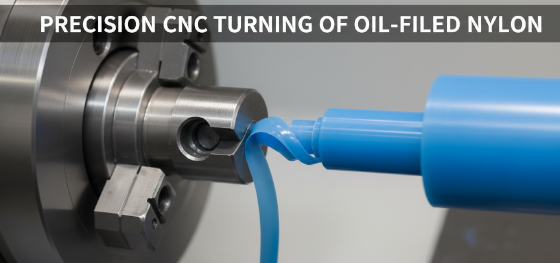

One would think that a slippery material is easier to cut, but Machining Oil-Filled Nylon introduces its own set of technical hurdles. Because the material is naturally lubricated, the cutting tool has a tendency to "skate" over the surface rather than bite into it. If the tool is not sharp enough, it creates a rubbing action that generates excessive heat, which can cause the integrated oil to "boil" out of the surface, leaving a pitted and hazy finish.

At Jucheng Precision, we solve this with high-positive rake angle tooling and extremely high chip loads. We want to "slice" the nylon quickly before the oil has time to react to the friction of the tool. We also pay close attention to "Residue Management." The fine dust and oily chips generated during the process are much stickier than standard nylon waste. If they are not cleared instantly, they can "paste" onto the part, obscuring the dimensions and potentially causing tool breakage. We use high-pressure air blast systems to keep the cutting zone pristine. This careful control allows us to achieve tolerances of +/- 0.05mm, which is exceptional for a material that is technically designed to be unstable. We also perform a specialized ultrasonic cleaning process after machining to ensure the parts arrive at your door clean and ready for assembly, with the lubrication stored safely inside the plastic, not on the surface.

Critical Applications in Food and Automation

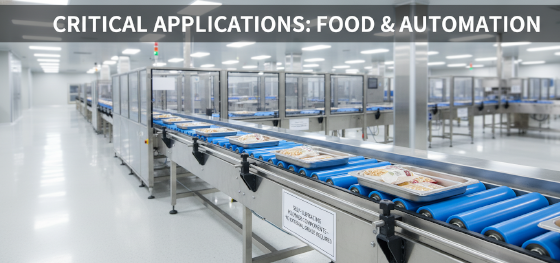

Where is self-lubrication a mandatory requirement? The answer is "No-Grease Zones." In the food processing and pharmaceutical industries, external lubricants are a major contamination risk. Even food-grade grease can collect bacteria or drip into the product. Oil-filled nylon is a miracle material for these sectors. Because the oil is trapped in the polymer, there is no "dripping" or "bleeding." The lubrication stays exactly where the friction happens.

JUCHENG frequently machines oil-filled PA6C for star wheels, timing screws, and bottling plant guides. These parts must survive millions of cycles while being washed down with harsh cleaning chemicals daily. The integrated oil ensures that even after a high-pressure wash, the parts remain self-lubricating. In the heavy automation sector, we produce large-scale telescopic boom pads and wear plates for cranes and forklifts. These parts must move under massive loads without seizing. Replacing steel-on-steel contact with oil-filled nylon bushings eliminates the need for technicians to climb high structures for weekly greasing, dramatically improving safety and reducing maintenance budgets.

JUCHENG's Specialty Plastic Expertise

Working with specialty engineering plastics like oil-filled nylon is the hallmark of a high-end manufacturer. At Jucheng Precision, we don't just follow a CAD drawing; we act as material consultants. We often work with clients who are experiencing premature failure in their standard nylon or Delrin bushings. Our first recommendation is often a switch to Machining Oil-Filled Nylon to solve the underlying friction issues.

Our facility is equipped with specialized high-speed spindles and climate-controlled production zones to manage the unique expansion characteristics of polyamides. We understand that transparency in sourcing is critical, which is why we only utilize premium, certified oil-filled stock from world-class suppliers. Whether you need a small batch of prototypes for a new medical assembly or a full production run of industrial gears, Jucheng Precision has the technical rigor and the manufacturing capacity to deliver. We provide the smoothness of oil with the precision of CNC. Contact our engineering team today for a free DFM review and see how our self-lubricating plastic solutions can move your business forward.
