In the massive world of industrial manufacturing, some materials exist as high-performance specialists, while others serve as the very foundation upon which everything else is built. AISI 1018 steel belongs to the latter. Often referred to simply as "Mild Steel," it is arguably the most common low-carbon steel used in modern production. It is the material of choice when a project requires a delicate balance of affordability, ease of welding, and reliable mechanical performance.
However, the ubiquity of this material does not mean it is simple to process. In the realm of CNC Steel Machining, 1018 presents a classic manufacturing paradox. Its low carbon content makes it incredibly ductile and easy to weld, yet that same ductility creates a "gummy" behavior under a cutting tool that can ruin surface finishes and lead to unpredictable tool wear. At Jucheng Precision, we have spent over a decade refining the art of machining 1018 steel, ensuring that even the most basic mild steel components meet aerospace-level standards of precision.
Whether you are designing a simple structural bracket or a complex multi-part assembly requiring tight tolerances, understanding the metallurgical soul of 1018 is the first step toward a successful build. This guide explores how JUCHENG navigates the challenges of this versatile alloy to deliver superior results for our global clients.
What defines 1018 steel is its chemistry. It is a low-carbon alloy containing approximately 0.18% carbon and 0.6% to 0.9% manganese. This specific recipe results in a material that is relatively soft compared to high-carbon tool steels, but with exceptional ductility and toughness. It is essentially the "polite" member of the carbon steel family—it bends before it breaks and accepts heat without becoming brittle.

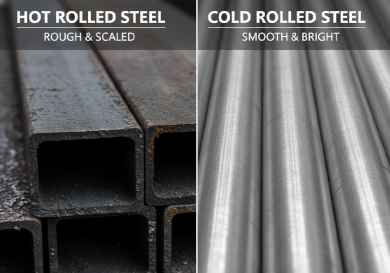

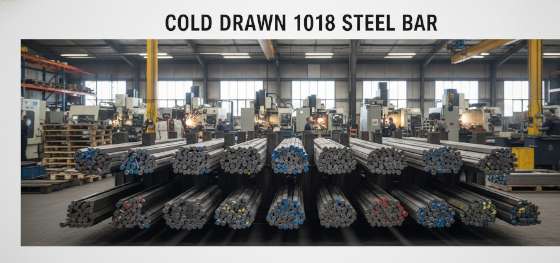

For engineers, the greatest appeal of 1018 lies in its weldability. Because the carbon content is low, there is a minimal risk of "cold cracking" or hardening at the heat-affected zone during welding. This allows for the creation of massive, complex fabricated structures that can still be refined through precision machining later. Furthermore, 1018 is highly responsive to cold drawing processes, which improves its tensile strength and provides a much smoother surface finish than hot-rolled alternatives. When we perform CNC Steel Machining on 1018, we almost exclusively start with cold-drawn bar stock to ensure the highest dimensional stability.
Tackling the Gummy Texture in Machining

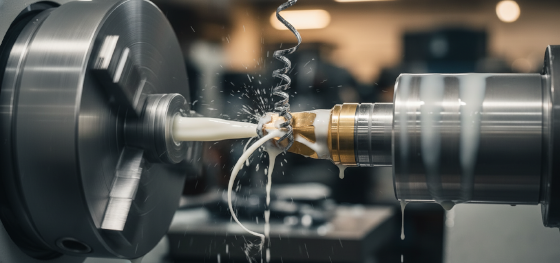

If you ask an inexperienced machinist about 1018, they might tell you it is easy because it is soft. Ask a veteran at Jucheng Precision, and they will tell you it can be a nightmare if handled incorrectly. The primary challenge of machining 1018 steel is its inherent "gumminess." Because the metal is so ductile, it doesn't like to fracture into clean, crisp chips. Instead, it wants to tear.
If the cutting speed is too low or the tool is not sharp enough, the steel will literally smear across the tool face, leading to a phenomenon called "Built-Up Edge" (BUE). This causes a poor surface finish that looks ragged and dull rather than bright and smooth. To solve this, JUCHENG engineers utilize high positive-rake geometries on our cutting inserts. We increase the Surface Feet per Minute (SFM) to generate enough heat to soften the chip but not enough to melt the tool, allowing the material to shear cleanly. High-pressure coolant is also essential here, not just for temperature control, but to physically blast those gummy chips away from the cutting zone before they can be re-cut and mar the surface.
Industrial Roles: Where 1018 Thrives
Because of its cost-effectiveness and versatility, 1018 is found in almost every sector of heavy and light industry. It is the king of "non-critical" components—parts that don't need to survive the heat of a jet engine but must be reliable and cheap to produce in volume.

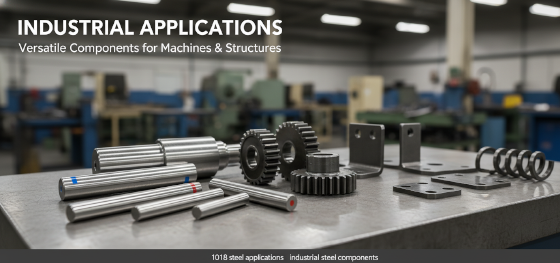

Common applications include structural brackets, base plates for heavy machinery, pins, dowels, and mounting blocks. In the automotive sector, it is frequently used for simple chassis components and linkages. Its ability to be cold-formed means it is also perfect for parts that require a mix of machining and bending. While it may not have the "glamour" of titanium or 4340 alloy steel, the global supply chain would grind to a halt without the steady production of 1018 steel components.
JUCHENG's Hybrid Approach: Welding and Machining
This is where Jucheng Precision offers a distinct advantage over standard machine shops. Because 1018 is so easy to weld, many of our clients design complex assemblies that consist of several 1018 plates or bars welded together. A typical shop might struggle with the resulting thermal distortion, but we thrive on it.
Our hybrid manufacturing workflow involves first fabricating the structure through precise welding, then stress-relieving the assembly, and finally putting it on one of our large-format CNC mills for a "final skim." This ensures that even a massive 1018 weldment can have mounting holes and mating surfaces with tolerances of +/- 0.02mm. By combining fabrication and precision machining under one roof, we eliminate the finger-pointing that often happens between separate welding and machining vendors, providing our customers with a ready-to-install "bolt-on" solution.
Beyond the Cut: Case Hardening and Plating

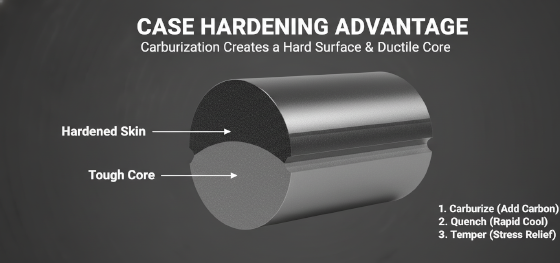

One of the few limitations of 1018 steel is its low hardness. In its raw state, it will wear down quickly if exposed to constant friction. However, there is a metallurgical trick to solve this: Case Hardening (Carburizing). Since 1018 has low carbon, we can "force" more carbon into the outer layer of the part in a high-temperature furnace.

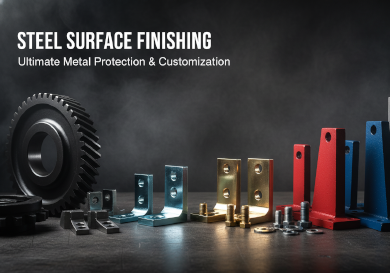

The result is a part with a glass-hard "skin" (often reaching 58-62 HRC) while maintaining a soft, ductile, and shock-resistant core. This makes it perfect for gears, pins, and cams that need surface durability without the brittleness of high-carbon steels. Additionally, 1018 is an excellent substrate for surface finishes. Whether you need zinc plating for rust prevention, black oxide for aesthetics, or chrome plating for wear resistance, 1018 accepts these treatments beautifully.
At Jucheng Precision, we don't just stop at the machining. We manage the entire lifecycle of your 1018 parts. From material verification with our in-house spectrometer to managing the heat treatment and plating through our certified partners, we deliver finished components that are ready for the most demanding environments. If your next project requires the reliable performance of 1018 steel, let our engineers show you how our expertise in CNC Steel Machining can turn this "basic" material into an extraordinary component.
