Why Machining 4140 Steel is Essential for High-Stress Parts
Views: 1 Author: Allen Xiao Publish Time: 2026-01-08 Origin: Site
In the high-stakes world of automotive racing, deep-sea oil drilling, and heavy-duty aerospace engineering, standard carbon steels are often viewed as mere toys. When a component is subjected to brutal torque, constant vibration, or extreme cyclic loading, engineers turn to a true "Iron Man" of the alloy world: AISI 4140. Known affectionately in the industry as "Chromoly," this material is the gold standard for parts that simply cannot be allowed to fail.

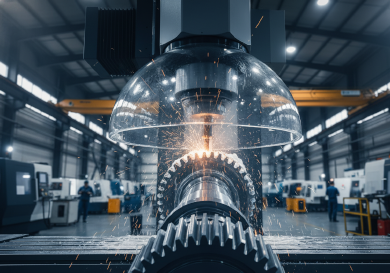

However, the same properties that make this metal a hero in the field make it a formidable opponent on the shop floor. Machining 4140 steel requires a level of respect and technical nuance that far exceeds simple mild steel processing. It is a material that demands high cutting forces, generates intense localized heat, and punishes inexperienced machinists with rapid tool failure. At Jucheng Precision, we have perfected the art of CNC Steel Machining for these high-strength alloys, ensuring that your most critical structural components are delivered with absolute dimensional integrity.
Whether your project involves high-performance crankshafts or heavy-duty industrial fasteners, choosing the right machining strategy for 4140 is essential for both performance and budget. This deep dive explores the metallurgical soul of Chromoly and the advanced strategies JUCHENG employs to tame this tough alloy.

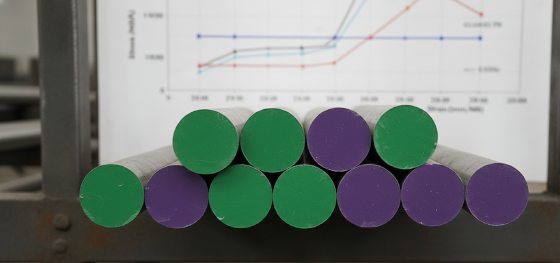

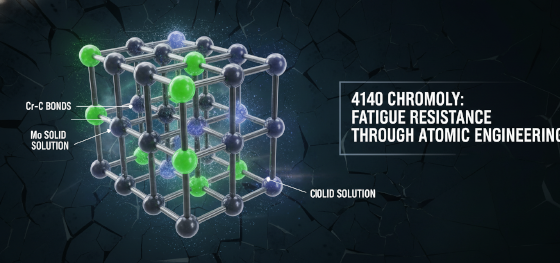

The name "Chromoly" isn't just a marketing buzzword; it refers to the two key alloying elements that give 4140 its legendary status: Chromium and Molybdenum. While standard carbon steels rely solely on carbon for strength, 4140 uses these alloying agents to achieve a superior balance of toughness and hardenability.
Chromium provides the material with enhanced hardness and a degree of corrosion resistance, though it is not stainless. Molybdenum is perhaps the most important ingredient, as it increases the material's "hardenability" and prevents it from becoming brittle at high temperatures. Together, they allow 4140 to maintain a high strength-to-weight ratio and excellent fatigue resistance. This means that a 4140 part can be designed to be lighter and thinner than a 1045 steel counterpart while still withstanding higher impact forces without cracking. For the designers we work with, 4140 is the ultimate insurance policy against mechanical failure.

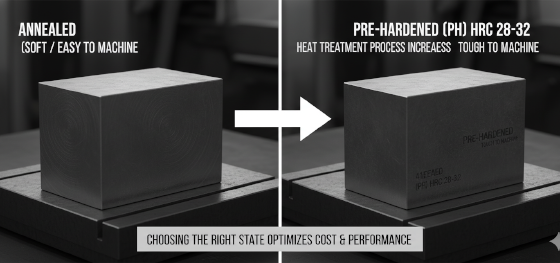

Pre-Hardened vs. Annealed: The Procurement Dilemma
When starting a project involving machining 4140 steel, the first decision is the material's initial condition. This is a critical crossroad that affects both the final part quality and the total production cost.
Annealed Condition: In this state, the material is at its softest, making it easy to remove large amounts of stock quickly. However, once the machining is finished, the part must be sent for heat treatment to reach its final strength. This post-processing often leads to dimensional distortion or "warping," which might require a second precision grinding operation to fix. Pre-Hardened Condition (PH): Many of JUCHENG's clients prefer us to machine 4140 in its pre-hardened state, typically around HRC 28-32. While this makes the metal much harder to cut, it eliminates the need for post-machining heat treatment. This means the dimensions we cut on the CNC machine are the final dimensions the client receives. It is a more difficult path for the machinist but a safer and often more cost-effective path for the project timeline.
Mastering the Tough Cut: Specialized Machining Strategies

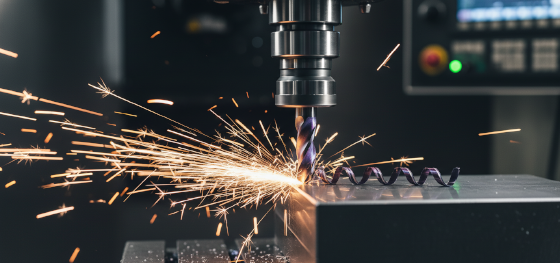

Because 4140 is so much tougher than carbon steel, it generates far more heat at the cutting edge. If you use standard speeds and feeds, the material will work-harden, and the tool will effectively "melt" against the workpiece. Mastering the tough cut is a core competency at Jucheng Precision.
We utilize specialized carbide tooling with TiAlN (Titanium Aluminum Nitride) or AlTiN coatings, which are designed to thrive in high-heat environments. These coatings actually become harder as they get hotter, providing a protective barrier for the tool's substrate. We also employ aggressive high-pressure cooling to flush away chips. Because 4140 chips are tough and abrasive, re-cutting a single chip can cause a tool to snap instantly. Our strategy involves keeping the tool engaged with constant pressure to avoid rubbing, which is the primary cause of work hardening in alloy steels. This meticulous approach allows us to hold tolerances of +/- 0.01mm even on pre-hardened stock.
Applications in High-Stress Environments
Where does 4140 truly earn its keep? It is found anywhere that reliability is a non-negotiable requirement under extreme stress.

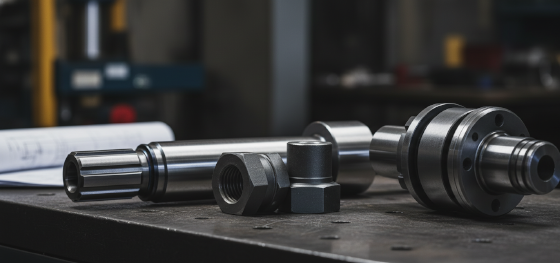

In the automotive performance world, 4140 is the material of choice for drive shafts, axles, and roll cages. Its ability to absorb shock without catastrophic snapping makes it a safety-critical material. In the industrial sector, it is used for heavy-duty hydraulic piston rods, large-scale gears, and custom bolting for pressure vessels. We also produce a significant number of 4140 tool holders and fixtures for other manufacturing plants because of its long-term dimensional stability. When the stakes are high and the loads are heavy, 4140 is the alloy that delivers peace of mind.
JUCHENG's Engineering Edge: Hard Material Expertise
At Jucheng Precision, we don't just "push buttons" on a machine. Processing 4140 requires a deep engineering partnership. We often perform DFM (Design for Manufacturing) reviews for our clients to help them choose between annealed and pre-hardened stock based on their geometry.
Our expertise in CNC Steel Machining means we can optimize tool paths using dynamic milling or trochoidal tool paths. This technique maintains a constant tool engagement angle, which significantly reduces the thermal shock on the cutter and allows us to machine pre-hardened 4140 much faster than traditional methods. By reducing tool wear and cycle times, we can offer our clients competitive pricing for materials that other shops might consider "too difficult." From material sourcing with full mill certification to final precision inspection, JUCHENG ensures that your Chromoly parts are as tough as the environments they were built for.
